150-UC-23 : H Channel (150mm) Galvanised Steel Middle Joiner Retaining Wall Post
$67.50 – $450.00 +GST
Heavy Duty 45° Galvanised Steel (150mm) Corner Retaining Wall Post
$130.50 – $870.00 +GST

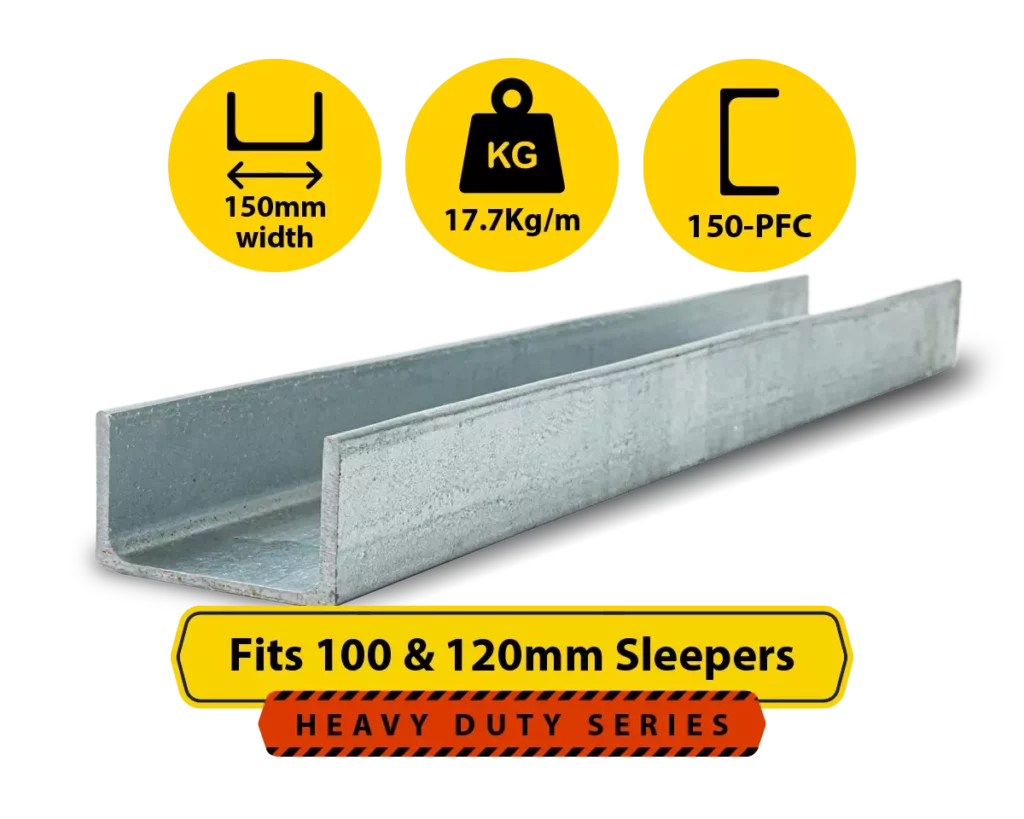

150-PFC : C Channel (150mm) Galvanised Steel End Joiner Retaining Wall Post (All Lengths)
$58.50 – $390.00 +GST
This 150-PCF (150mm Parallel Flange Channel) post is long-lasting and compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.
Features:
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards AS/NZS 4680
- Can be pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
- Comes in 16 different lengths
Introducing the Heavy Duty Series, C Channel 150mm Galvanised Steel End Post (150-PCF), the ideal solution for supporting the end panels of your structural retaining wall projects.
This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.
Weighing in at approximately 17.7 kg per metre, the 150mm C-Channel comes in 16 different lengths, ranging from 900mm all the way up to 6 meters in length.
Alternatively, if you’re looking for the 200-PCF premium steel posts, then we can organise a custom order for you. Please contact our support team to enquire, or call us on 0410 818 242.
If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 17.7 kg/m |
| Depth (Overall Height): No selection | 150mm |
| Flange Width: No selection | 75mm |
| Flange Thickness: No selection | 9.5mm |
| Web Thickness: No selection | 6.0mm |
| Root Radius: No selection | 10.0mm |
| Depth between flanges: No selection | 131mm |
| Moment of Inertia - XX: No selection | 8.34 million mm**4 |
| Moment of Inertia - YY: No selection | 1.29 million mm**4 |
