100-PFC : C Channel (100mm) Galvanised Steel End Joiner Retaining Wall Post (All Lengths)
Price range: $28.61 through $123.98 each inc. GST
- Unlock Trade Pricing
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.

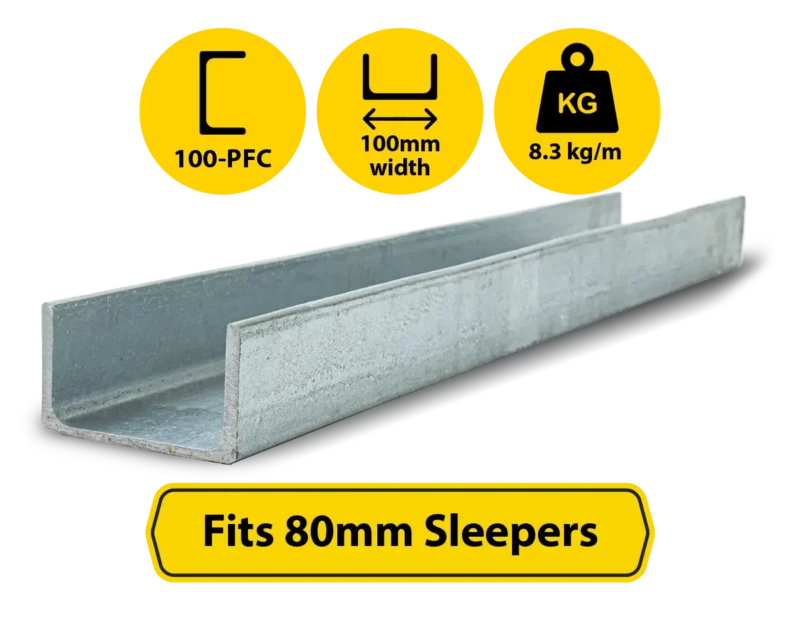

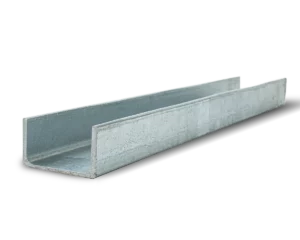

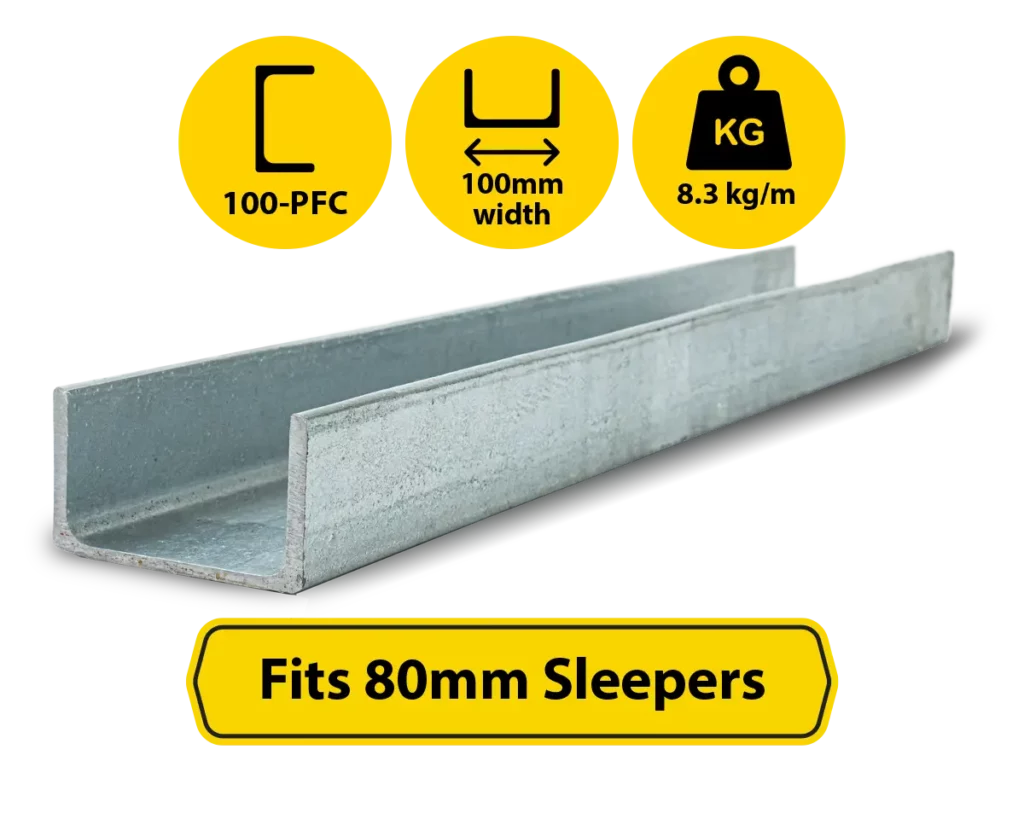

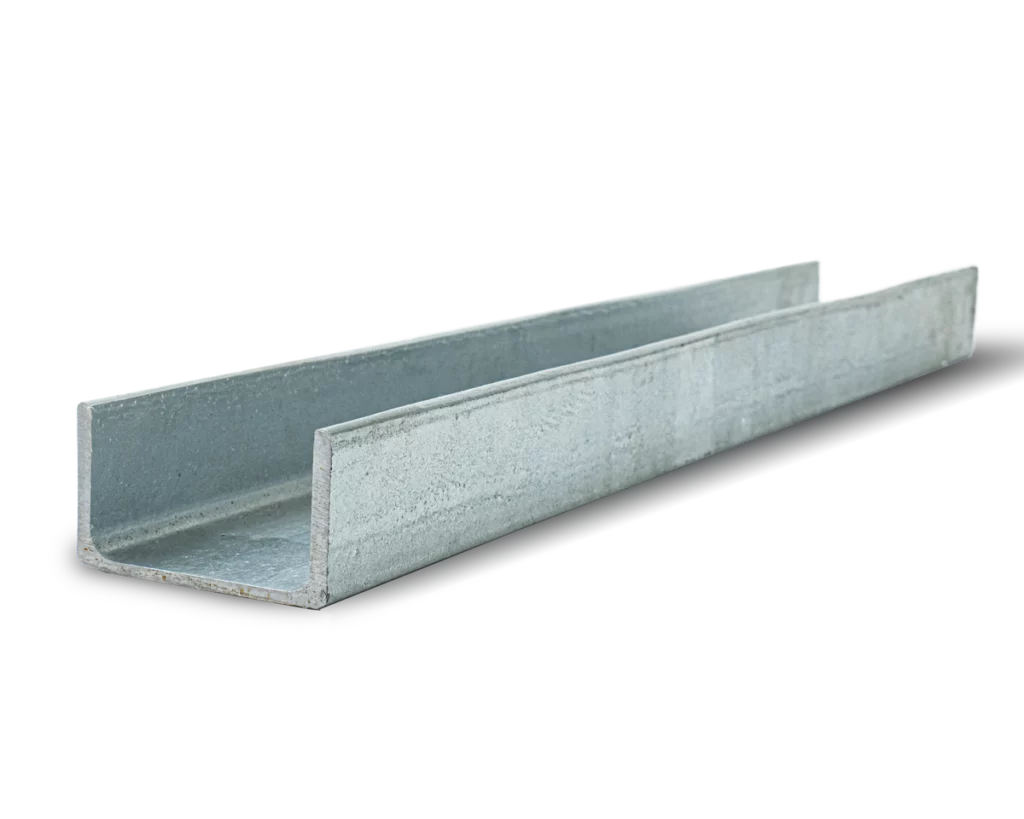

Introducing the C Section 100mm Galvanised Steel End Post (100-PCF), the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 100-PCF (100mm Parallel Flange Channel) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).
This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.Â
Weighing in at approximately 8.33 kg per metre, the 100mm C-Channel comes in 11 different lengths ranging from 900mm up to 3.9 meters.Â
This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.Â
Your quote request is completely obligation-free. No payment or credit card details are required at checkout , and you won’t be charged at this stage.
Once we receive your order details, our team will prepare and send you a formal quote with payment instructions for your review.
- Delivery Cost Calculator (Vic-only)
This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 8.330 kg/m |
| Depth (Overall Height): No selection | 100mm |
| Flange Width: No selection | 50mm |
| Flange Thickness: No selection | 6.7mm |
| Web Thickness: No selection | 4.2mm |
| Root Radius: No selection | 8mm |
| Depth between flanges: No selection | 86.6mm |
| Moment of Inertia - XX: No selection | 1.74 million mm**4 |
| Moment of Inertia - YY: No selection | 0.267 million mm**4 |
