Heavy Duty 45° Galvanised Steel (150mm) Corner Retaining Wall Post
Price range: $143.55 through $957.00 each inc. GST
- Unlock Trade Pricing
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.

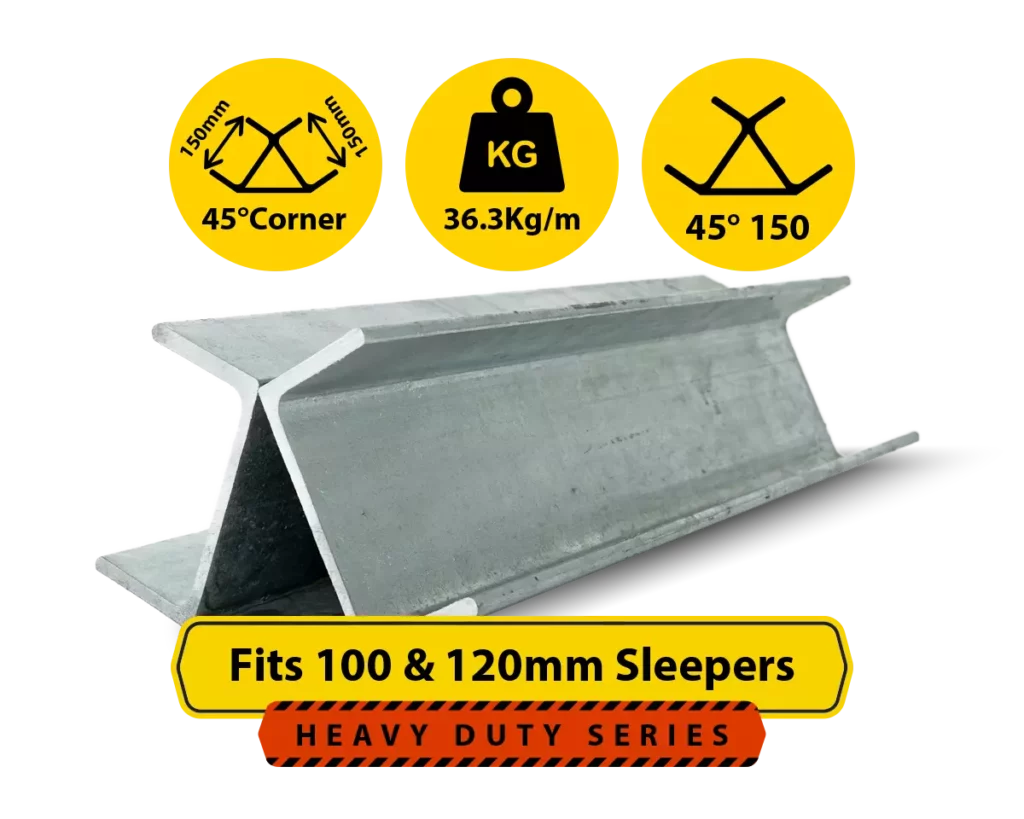

Introducing the Heavy Duty Series, 45° Galvanised Steel (150mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this corner steel post is ideal for gentle deviations in the middle panels of your concrete sleeper retaining wall. The 45° Galvanised Steel post is compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.
This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.
Weighing in at approximately 38.5 kg per metre, the 150mm 45° Galvanised Steel comes in 15 different lengths, ranging from 900mm all the way up to 6 meters in length.
If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.
Your quote request is completely obligation-free. No payment or credit card details are required at checkout , and you won’t be charged at this stage.
Once we receive your order details, our team will prepare and send you a formal quote with payment instructions for your review.
- Delivery Cost Calculator (Vic-only)
This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 38.5 kg/m |
| Depth (Overall Height): No selection | 150mm |
| Flange Width: No selection | 150mm |
| Flange Thickness: No selection | 9.5mm |
| Web Thickness: No selection | 6.0mm |
| Root Radius: No selection | 10.0mm |
