Heavy Duty 90° Galvanised Steel (150mm) Right Angle Retaining Wall Post

$130.50$870.00 +GST

Introducing the Heavy Duty Series, 90° Galvanised Steel (150mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this steel post is ideal for hard 90° corners of your concrete sleeper retaining wall. This 150mm 90° Galvanised Steel post is compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.

Made of hot-rolled steel and hot-dipped galvanised (zinc) coatings for long-term protection against weather, fire, and corrosion, this steel post is also manufactured to Australian standards AS/NZS 4680

This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.

Weighing in at approximately 38.5 kg per metre, the 150mm 90° Galvanised Steel comes in 15 different lengths, ranging from 900mm all the way up to 6 meters in length.

If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.

Add to Cart

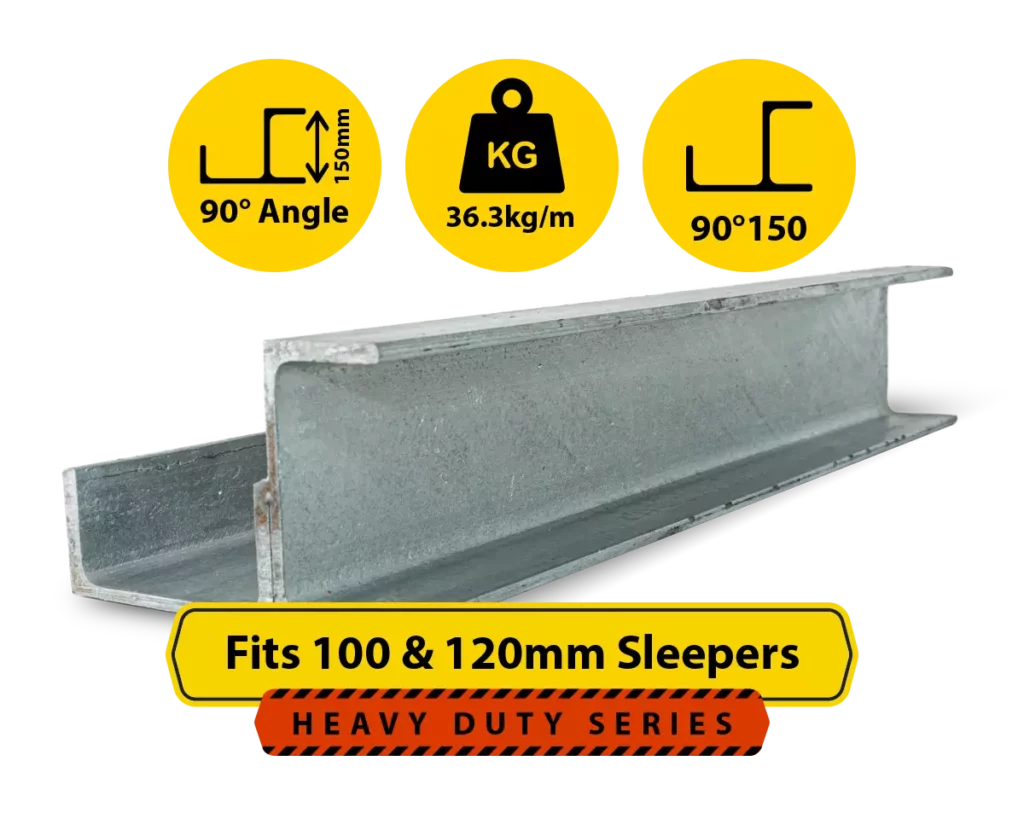

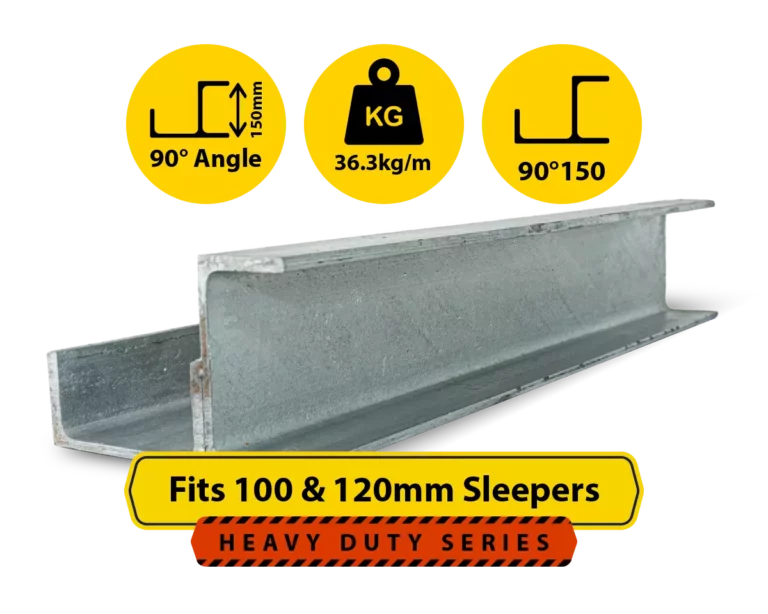

RWCP 90DEG 150 150 PC 90 Degree Galvanised Steel Corner Joiner Post to Support The Right Angle of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers
Heavy Duty 90° Galvanised Steel (150mm) Right Angle Retaining Wall Post
$130.50$870.00 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

Features

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

Additional information

Weight N/A
Dimensions N/A
Material: No selection

Hot Dipped Galvanised Steel

Weight KG-M: No selection

38.5 kg/m

Depth (Overall Height): No selection

150mm

Flange Width: No selection

150mm

Flange Thickness: No selection

9.5mm

Web Thickness: No selection

6.0mm

Root Radius: No selection

10.0mm
