45° Galvanised Steel (100mm) Corner Retaining Wall Post (All Lengths)
Price range: $78.11 through $338.48 each inc. GST
- Unlock Trade Pricing
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.

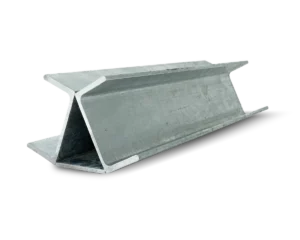

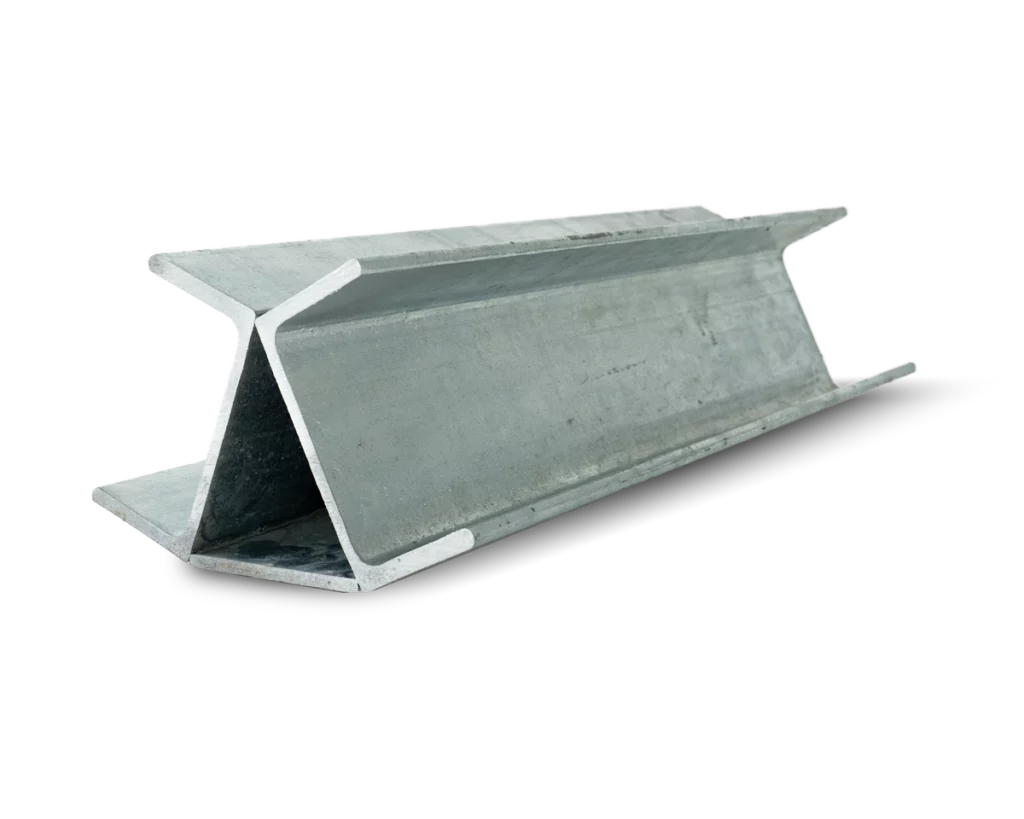

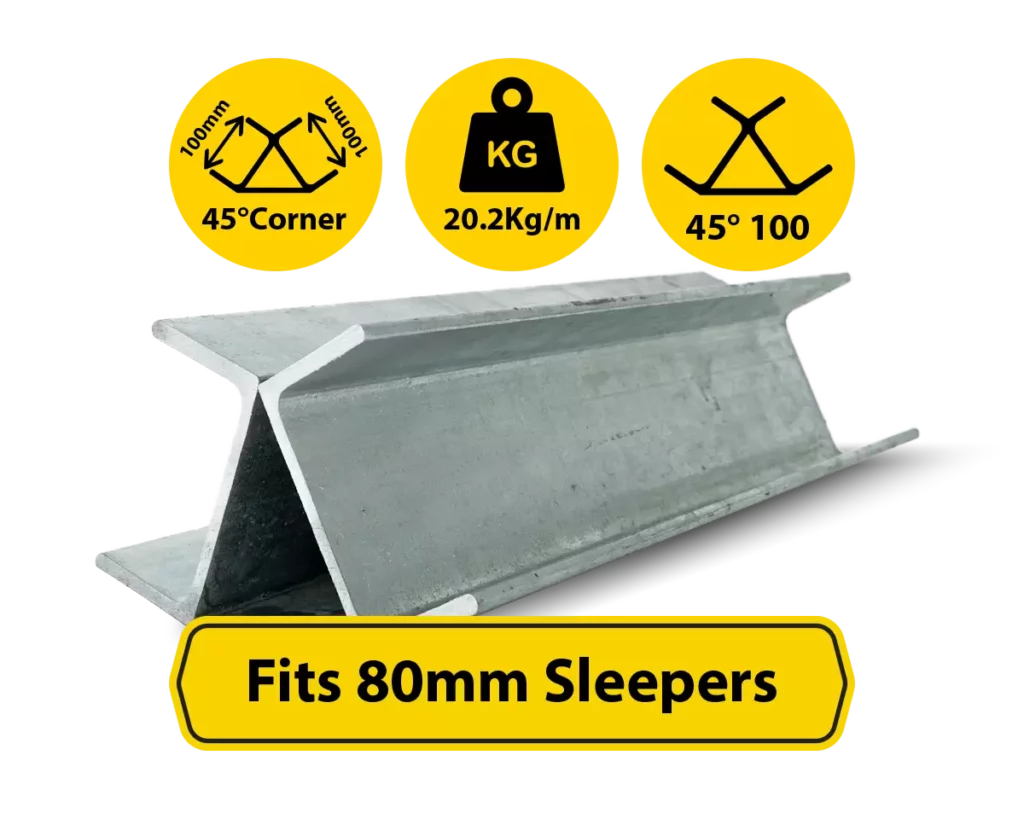

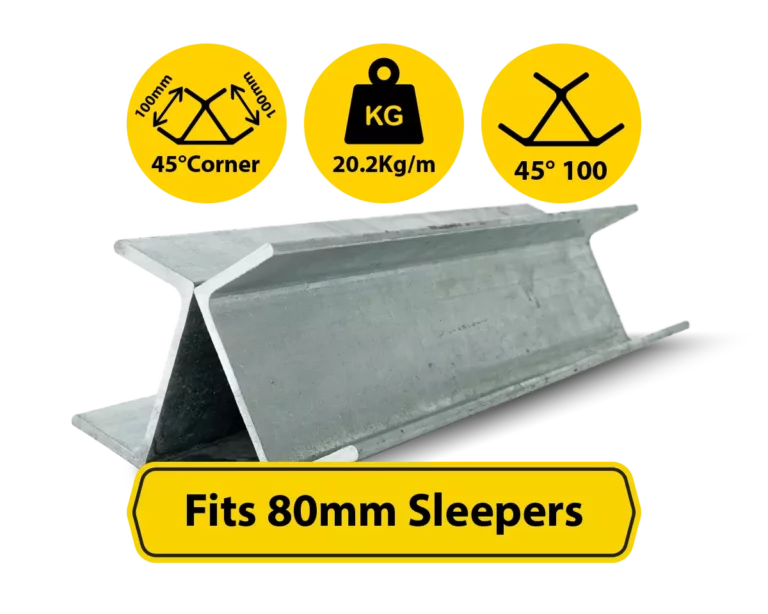

Introducing the 45° Galvanised Steel (100mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this corner steel post is ideal for gentle deviations in the middle panels of your concrete sleeper retaining wall. The 45° Galvanised Steel post is compatible with any of our 80mm thick concrete sleepers.
Made of hot-rolled steel and hot-dipped galvanised (zinc) coatings for long-term protection against weather, fire, and corrosion, this steel post is also manufactured to Australian standards AS/NZS 4680.
Weighing in at approximately 20.19 kg per metre, the 45° steel posts come in 11 different lengths ranging from 900mm up to 3.9 meters.
This range also comes in the super heavy-duty 150mm thickness series, ideal for 100mm and 120mm thick concrete sleepers.
Your quote request is completely obligation-free. No payment or credit card details are required at checkout , and you won’t be charged at this stage.
Once we receive your order details, our team will prepare and send you a formal quote with payment instructions for your review.
- Delivery Cost Calculator (Vic-only)
This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 20.190 kg/m |
| Depth (Overall Height): No selection | 100mm |
| Flange Width: No selection | 50mm |
| Flange Thickness: No selection | 6.7mm |
| Web Thickness: No selection | 4.2mm |
| Root Radius: No selection | 8mm |
| Depth Between Flanges: No selection | 86.6mm |
