6mm Arrow Steel Fence Bracket / Fence Cleats for Retaining Walls Posts
$27.50 each inc. GST
- Unlock Trade Pricing
The Arrow style Fence brackets / Fence cleats are specifically designed to join timber and steel fence posts to Retaining Wall Posts and are best suited for our UC100 galvanised steel channel posts to cover most of your requirements when adding a fence to your retaining wall.
677 in stock
- Your Quote Request is obligation-free — no payment or credit card information is needed during checkout at this point in time.
- Delivery Estimate Calculator (Vic-only)
This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.

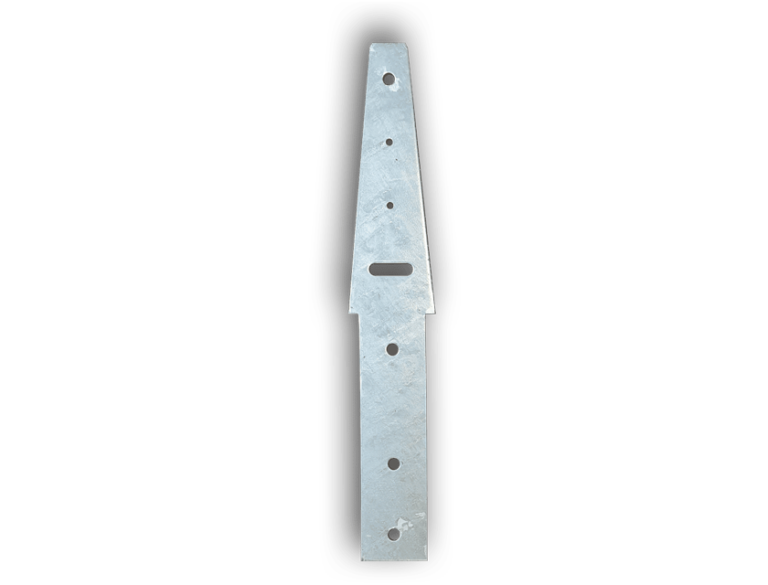

Made of 6mm galvanised steel plate and is weight rated to hold a colourbond fences, the Arrow Steel Fence Bracket enables you to bolt your fence directly to your retaining wall.
- Can be welded or bolted onto the steel channels
- Heavy-duty 6mm thickness
- Sleeper wall steel in stock with holes already drilled to suit brackets
- Suits H-Channel Posts, C-Channel Posts, 90° Right Angle Posts, and 45° Corner Channel Posts
Nuts, blots and washers are not included.
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 580 × 100 × 6 mm |
| Colour | Steel Grey |
| Material | Hot Dipped Galvanised Steel |
| Shape | Arrow Style |
