100-UC-15 : H Channel (100mm) Galvanised Steel Middle Joiner Retaining Wall Post (All Lengths)
Price range: $35.01 through $151.71 +GST
- Your Quote Request is obligation-free — no payment or credit card information is needed during checkout at this point in time.

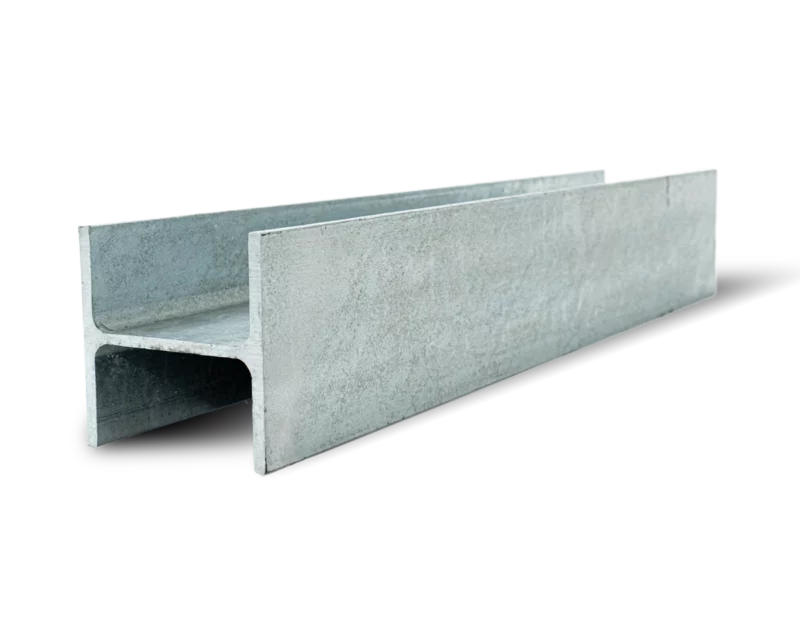

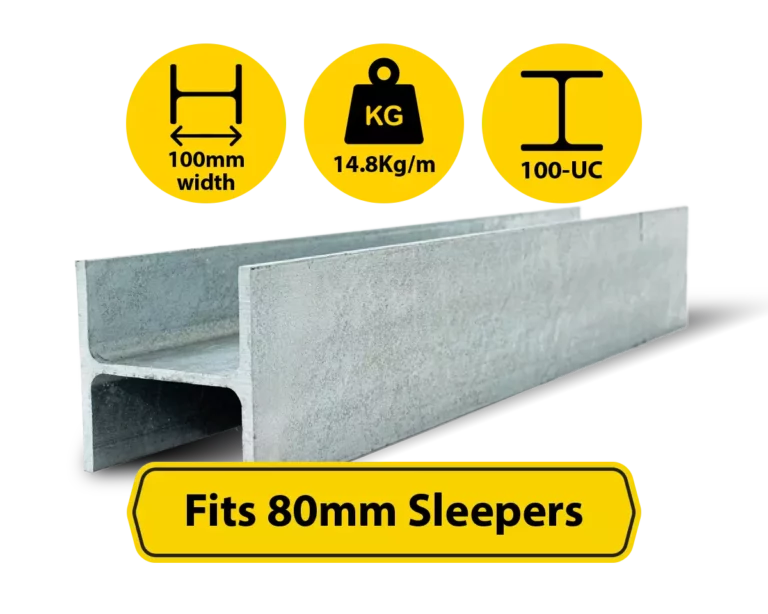

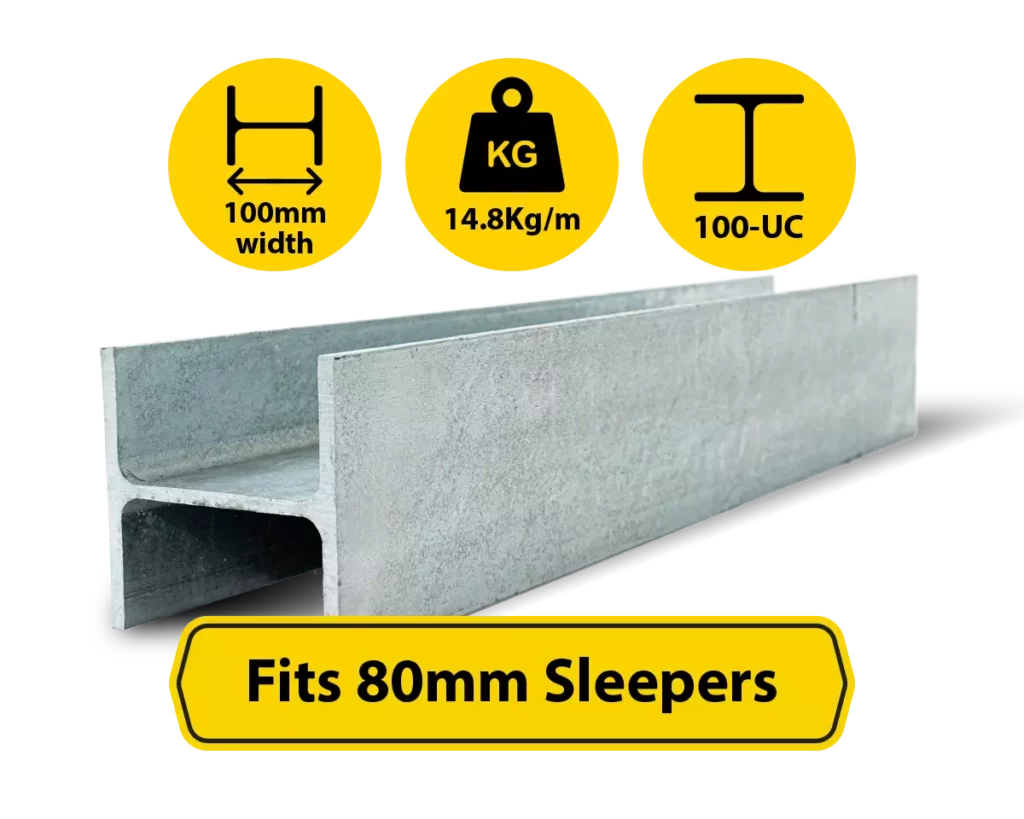

Introducing the H-Channel 100mm Galvanised Steel Middle Joiner Post (100-UC-14.8), the ideal solution for supporting the straight middle panels of your concrete sleeper retaining wall. This 100-UC (100mm Universal Column) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).
This steel post, made of hot-rolled steel and hot-dipped galvanised for long-term protection against weather, fire, and corrosion, is also manufactured to Australian standards AS/NZS 4680.Â
Weighing in at approximately 14.8 kg per metre, the 100mm H-Channel comes in 11 different lengths ranging from 900mm up to 3.9 meters.Â
This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.Â
Introducing the FREE and Exclusive Retaining Wall Calculator from Sunset Sleepers!
Take the guesswork out of your project—instantly find out how many concrete sleepers and steel posts you’ll need for your retaining wall.
For engineers and professionals, unlock advanced specs too, including Scoria backfill requirements, concrete volumes for posts, and more.
Plan smarter. Build with confidence. Try it today!
Statewide delivery across Melbourne and regional Victoria. Delivery costs depend on depot, address, order size, and vehicle needs.
Small taper (5-10mm) at the ends from face to back of sleeper
Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 14.8 kg/m |
| Depth (Overall Height): No selection | 97.0 mm |
| Flange Width: No selection | 99.0 mm |
| Flange Thickness: No selection | 7.0 mm |
| Web Thickness: No selection | 5.0 mm |
| Root Radius: No selection | 10.0 mm |
| Depth Between Flanges: No selection | 83mm |
