1800mm (1.8m) H-Channel Middle Joiner Galvanised Steel Post (100mm Width - Fits 80mm Sleepers)
$70.02 +GST
2400mm (2.4m) H-Channel Middle Joiner Galvanised Steel Post (100mm Width - Fits 80mm Sleepers)
$93.36 +GST
2100mm (2.1m) H-Channel Middle Joiner Galvanised Steel Post (100mm Width – Fits 80mm Sleepers)
$81.69 +GST

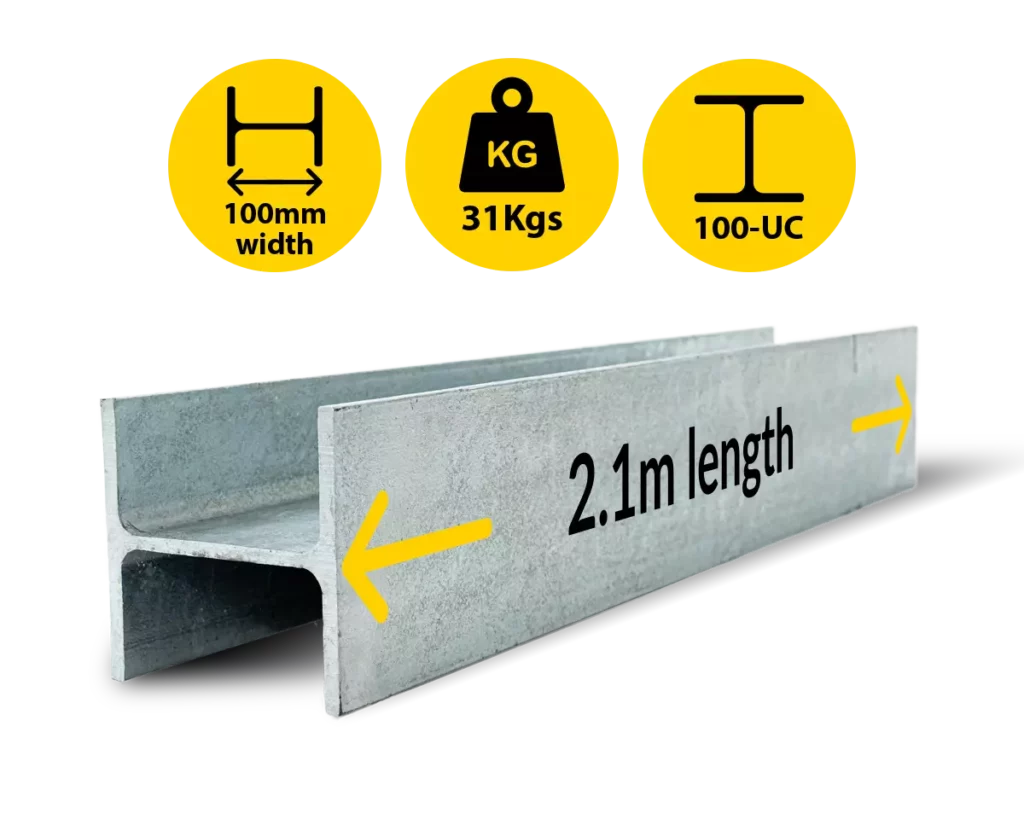

Introducing the 2100mm (2.1m) H-Channel (100-Uc) Middle Joiner Galvanised Steel Posts, the ideal solution for supporting the straight middle panels of your concrete sleeper retaining wall. This 100-UC (100mm Universal Column) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).
Features:
- Made of hot-rolled steel and hot-dipped galvanised (zinc)
- Long-term protection against weather, fire, and corrosion
- Manufactured to Australian standards AS/NZS 4680
- Weighing in at approximately 14.8 kg per metre
- It also comes in 11 different lengths of lengths up to 3.9 meters
963 in stock
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.
Additional information
| Weight | 31.08 kg |
|---|---|
| Dimensions | 2100 × 99 × 97 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 100mm Width |
| Steel Length | 2.1 Meters |
| Steel Type | H-Channel (UC) Middle Joiner |
| Weight KG-M | 14.8 kg/m |
| Depth (Overall Height) | 97.0 mm |
| Flange Width | 99.0 mm |
| Flange Thickness | 7.0 mm |
| Web Thickness | 5.0 mm |
| Root Radius | 10.0 mm |
| Depth Between Flanges | 83mm |
