90° Galvanised Steel (100mm) Right Angle Retaining Wall Post
Price range: $71.02 through $307.71 +GST
- Your Quote Request is obligation-free — no payment or credit card information is needed during checkout at this point in time.
90° Degree Steel Corner Posts support right angle deviations in the middle panels of a concrete sleeper retaining wall.

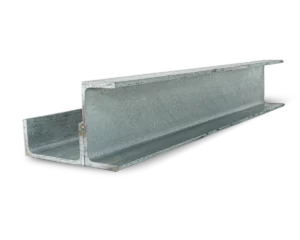

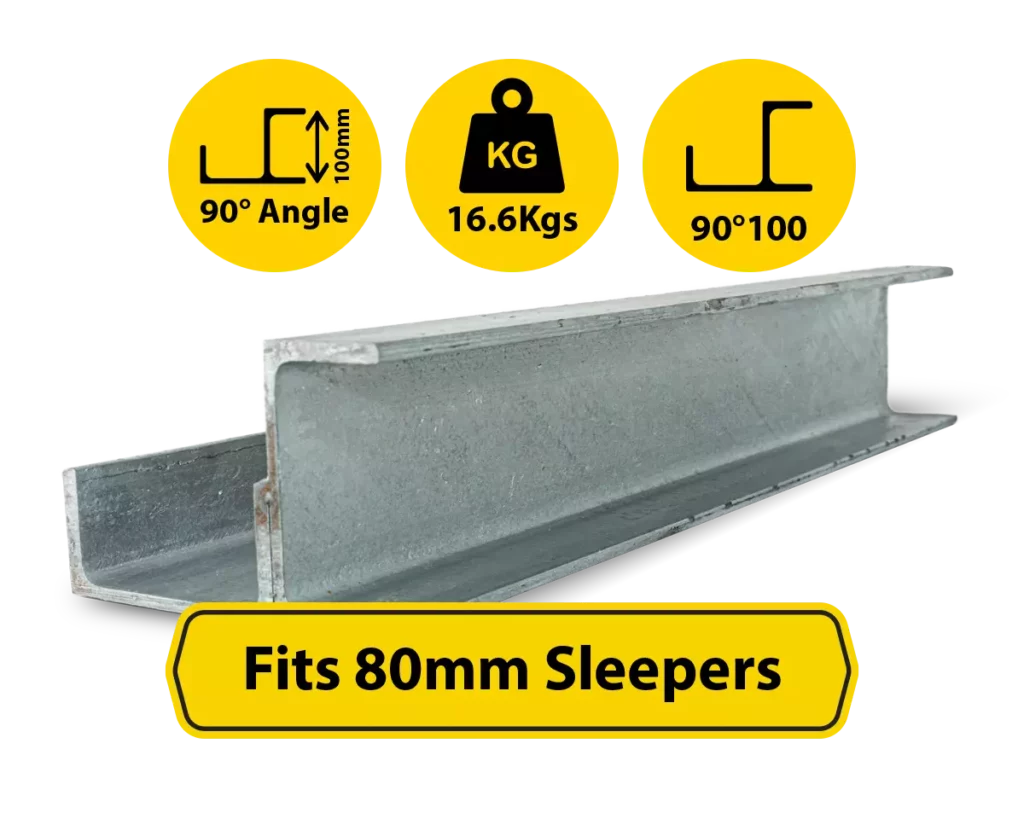

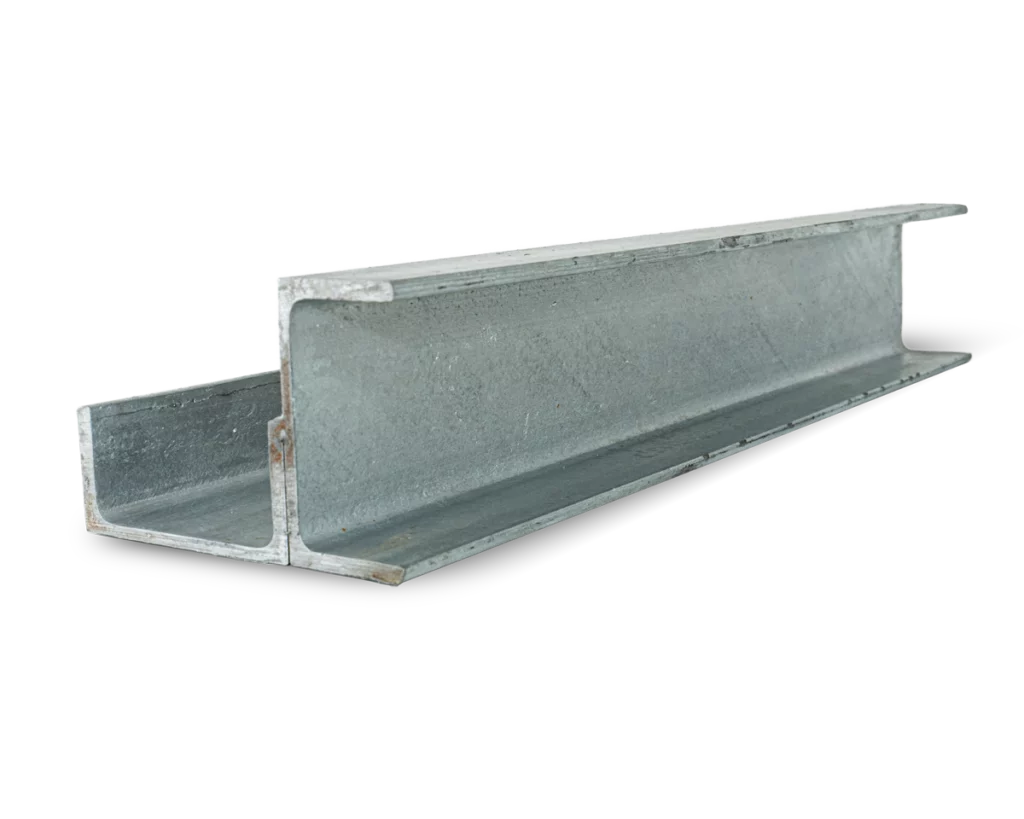

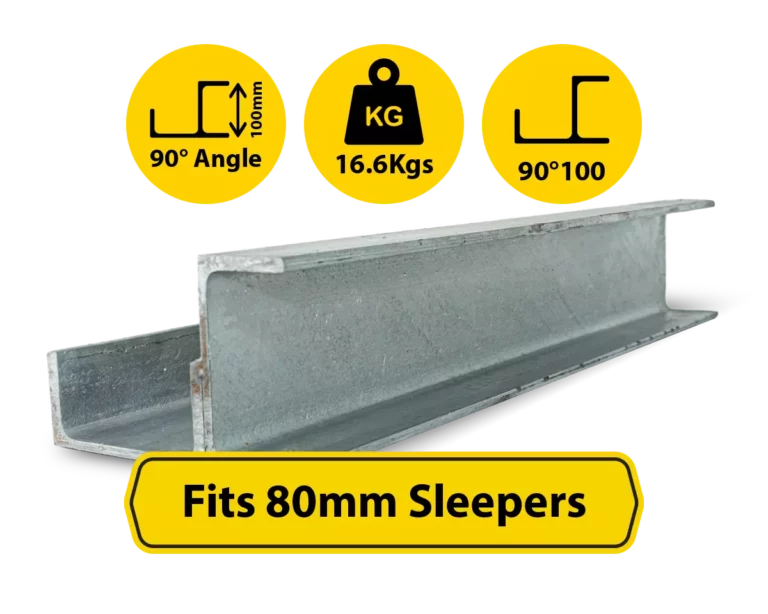

Introducing the 90° Galvanised Steel (100mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this steel post is ideal for hard 90° corners of your concrete sleeper retaining wall. This 100mm 90° Galvanised Steel post is compatible with any of our 80mm thick concrete sleepers.
Made of hot-rolled steel and hot-dipped galvanised (zinc) coatings for long-term protection against weather, fire, and corrosion, this steel post is also manufactured to Australian standards AS/NZS 4680.
Weighing in at approximately 16.66 kg per metre, the 90° steel posts come in 11 different lengths ranging from 900mm up to 3.9 meters.
This range also comes in the super heavy-duty 150mm thickness series, ideal for 100mm and 120mm thick concrete sleepers.
Introducing the FREE and Exclusive Retaining Wall Calculator from Sunset Sleepers!
Take the guesswork out of your project—instantly find out how many concrete sleepers and steel posts you’ll need for your retaining wall.
For engineers and professionals, unlock advanced specs too, including Scoria backfill requirements, concrete volumes for posts, and more.
Plan smarter. Build with confidence. Try it today!
Statewide delivery across Melbourne and regional Victoria. Delivery costs depend on depot, address, order size, and vehicle needs.
Small taper (5-10mm) at the ends from face to back of sleeper
Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Features
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Material: No selection | Hot Dipped Galvanised Steel |
| Weight KG-M: No selection | 16.66 kg/m |
| Depth (Overall Height): No selection | 100mm |
| Flange Width: No selection | 50mm |
| Flange Thickness: No selection | 6.7mm |
| Web Thickness: No selection | 4.2mm |
| Root Radius: No selection | 8mm |
| Depth Between Flanges: No selection | 86.6mm |
