H2.1 150UC.49 150 UC 23.4 H Channel Galvanised Steel Beam Middle Joiner Post to Support The Middle Panels of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers 2100mm (2.1m) Heavy Duty H-Channel Middle Joiner Galvanised Steel Post (150mm Width - Fits 100mm & 150mm Sleepers) $157.50 +GST
H2.7 150UC.63 150 UC 23.4 H Channel Galvanised Steel Beam Middle Joiner Post to Support The Middle Panels of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers 2700mm (2.7m) Heavy Duty H-Channel Middle Joiner Galvanised Steel Post (150mm Width - Fits 100mm & 150mm Sleepers) $202.50 +GST

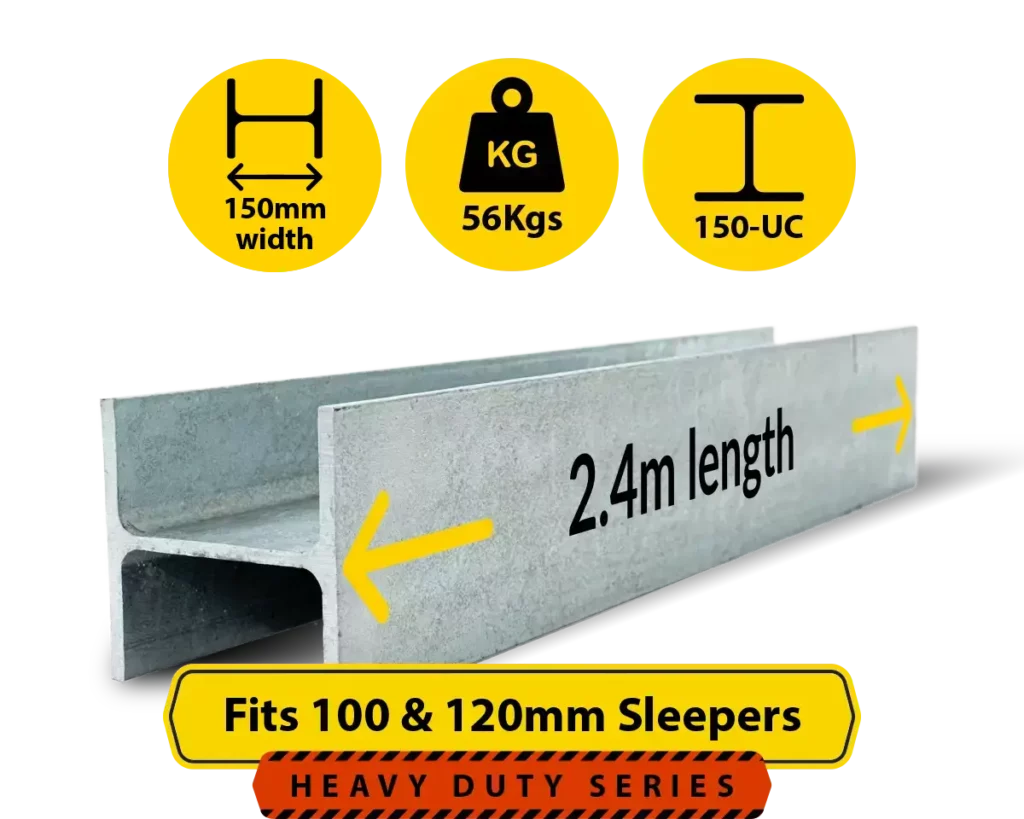

2400mm (2.4m) Heavy Duty H-Channel Middle Joiner Galvanised Steel Post (150mm Width – Fits 100mm & 150mm Sleepers)

$180.00 +GST

Introducing the 2400mm (2.4m) Heavy Duty Series H-Channel (150-Uc) Middle Joiner Galvanised Steel Posts, the ideal solution for supporting the straight middle panels of your concrete sleeper retaining wall. This 150-UC (150mm Universal Column) post is long-lasting and compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.

Features:

  • Made of hot-rolled steel and hot-dipped galvanised (zinc)
  • Long-term protection against weather, fire, and corrosion
  • Manufactured to Australian standards AS/NZS 4680
  • Weighing in at approximately 23.4 kg per metre
  • It also comes in 15 different lengths of lengths up to 6 meters

992 in stock

Add to Cart

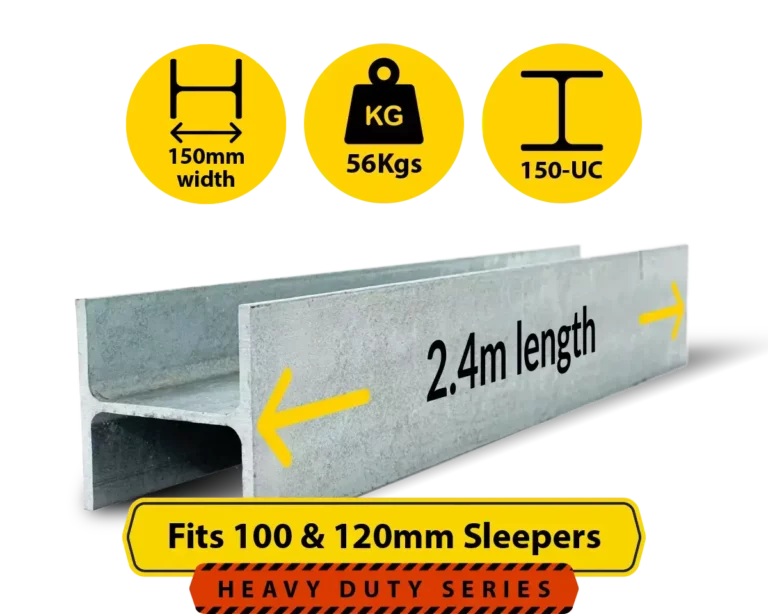

H2.4 150UC.56 150 UC 23.4 H Channel Galvanised Steel Beam Middle Joiner Post to Support The Middle Panels of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers
2400mm (2.4m) Heavy Duty H-Channel Middle Joiner Galvanised Steel Post (150mm Width - Fits 100mm & 150mm Sleepers)
$180.00 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.

Alternatively, if you’re looking for the 150-UC-30, 150-UC-37 or the 200-UC-46 premium steel range, then we can organise a custom order for you. Please contact our support team to enquire, or call us on 0410 818 242.

Additional information

Weight 56 kg
Dimensions 2400 × 152 × 152 mm
Material

Hot Dipped Galvanised Steel
Steel Width

150mm Width
Steel Length

2.4 Meters
Steel Type

H-Channel (UC) Middle Joiner
Weight KG-M

23.4 kg/m
Depth (Overall Height)

152.0 mm
Flange Width

152.0 mm
Flange Thickness

6.8mm
Web Thickness

6.1mm
Root Radius

8.9mm
Depth Between Flanges

139mm
SKU: H2.4 150UC.|56 Categories: , , , , , ,
