3600mm (3.6m) C-Channel End Panel Galvanised Steel Post (100mm Width – Fits 80mm Sleepers)

$104.04 +GST

Introducing the 3600mm (3.6m) C-Channel (100-PCF) End Panel Galvanised Steel Posts, the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 100-PCF (100mm Parallel Flange Channel) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).

Features:

  • Made of hot-rolled steel and hot-dipped galvanised (zinc)
  • Long-term protection against weather, fire, and corrosion
  • Manufactured to Australian standards AS/NZS 4680
  • Weighing in at approximately 8.33 kg per metre
  • It also comes in 11 different lengths of lengths up to 3.9 meters

999 in stock

Add to Cart

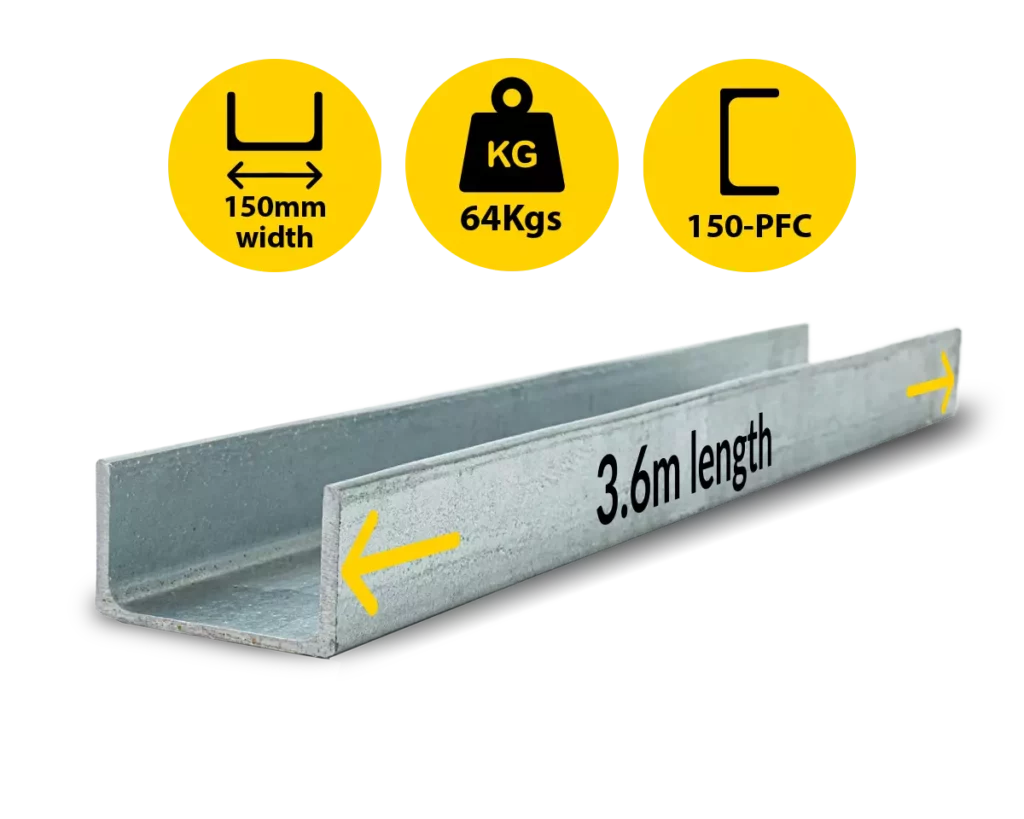

C3.6 150PFC.|64 PCF 150 18.15 C Channel Galvanised Steel Beam Posts to Support The End Panels of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers
3600mm (3.6m) C-Channel End Panel Galvanised Steel Post (100mm Width - Fits 80mm Sleepers)
$104.04 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers

Additional information

Weight 29.99 kg
Dimensions 3600 × 50 × 100 mm
Material

Hot Dipped Galvanised Steel

Steel Width

100mm Width

Steel Length

3.6 Meters

Steel Type

C-Channel (PFC) End Joiner

Weight KG-M

8.330 kg/m

Depth (Overall Height)

100mm

Flange Width

50mm

Flange Thickness

6.7mm

Web Thickness

4.2mm

Root Radius

8mm

Depth Between Flanges

86.6mm
