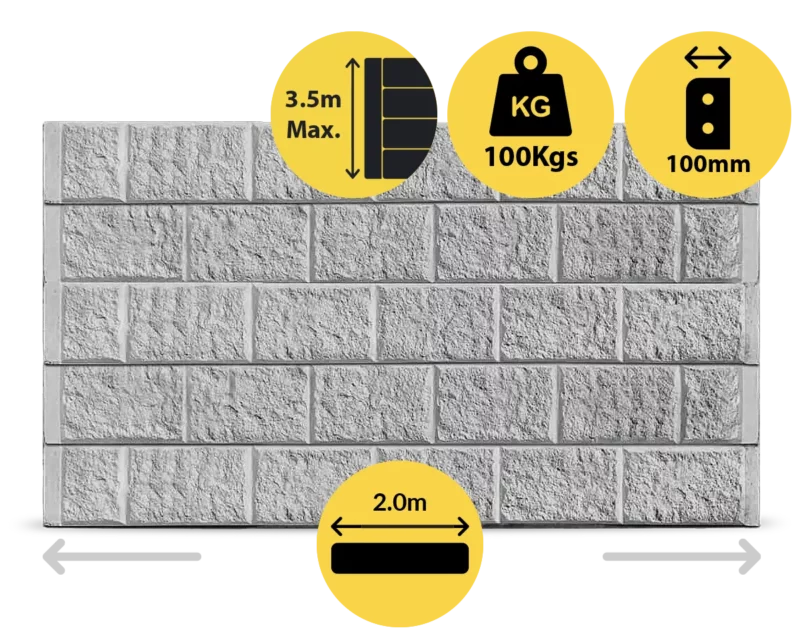

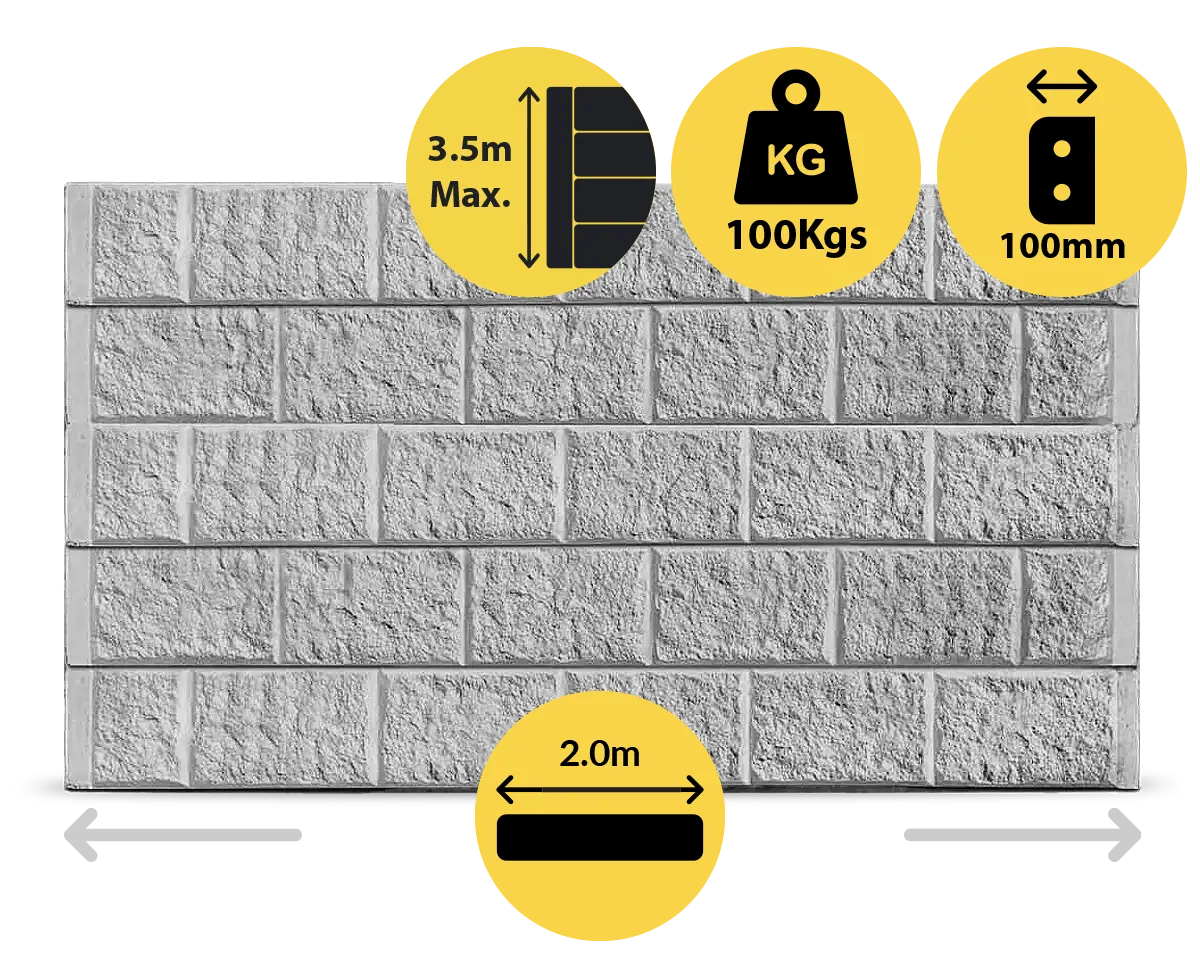

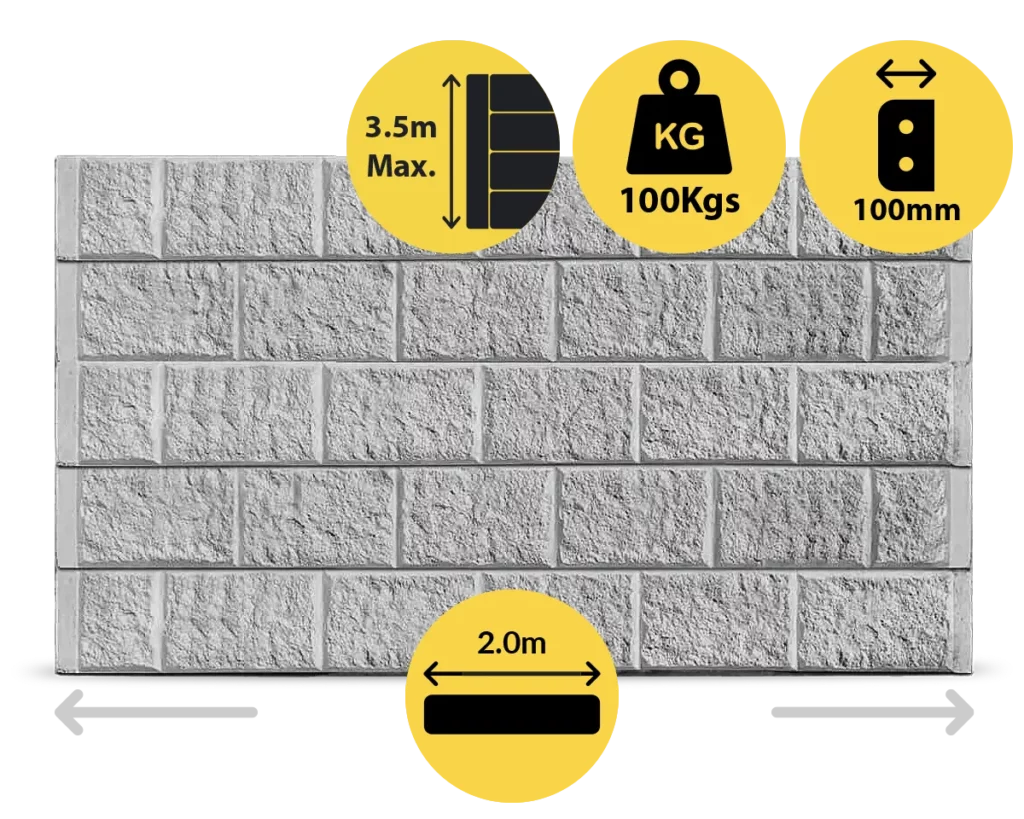

Block-face Ash 2000 x 200 x 100mm Heavy Duty Concrete Sleeper
Original price was: $58.30.$54.45Current price is: $54.45. each inc. GST
- Unlock Trade Pricing
3.5m Max. Retained Height
2-N12 Reo Bars
Concrete Strength
25 Year Product Warranty
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.
10000 in stock
| Colour: Ash |
|
| Thickness: 100mm | |
| Back Length: 2.0 Meters |
10000 in stock
- Your Quote Request is obligation-free — no payment or credit card information is needed during checkout at this point in time.
See below PDF downloads related to this product:
Introducing the FREE and Exclusive Retaining Wall Calculator from Sunset Sleepers!
Take the guesswork out of your project—instantly find out how many concrete sleepers and steel posts you’ll need for your retaining wall.
For engineers and professionals, unlock advanced specs too, including Scoria backfill requirements, concrete volumes for posts, and more.
Plan smarter. Build with confidence. Try it today!
Small taper (5-10mm) at the ends from face to back of sleeper
Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.
Statewide delivery across Melbourne and regional Victoria. Delivery costs depend on depot, address, order size, and vehicle needs.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 2000 × 100 × 200 mm |
| Back Length | 2.0 Meters |
| Thickness | 100mm |
| Colour | Ash |
| Pattern | Block-Face |
| Material | Concrete and Steel |
| Concrete Strength | 40MPa |
| Reinforcement | 2-N12 Steel Bars |
| Maximum Retained Height | 5000mm |
| Concrete Australian Standards | AS 3600 Certified |
| Steel Standard | ACRS Certified |
| Environmental Impact | Verified as “Eco-Preferred Products” by Global GreenTag |
| Warranty | 25 Years |
| Lifespan | 50 Years |
