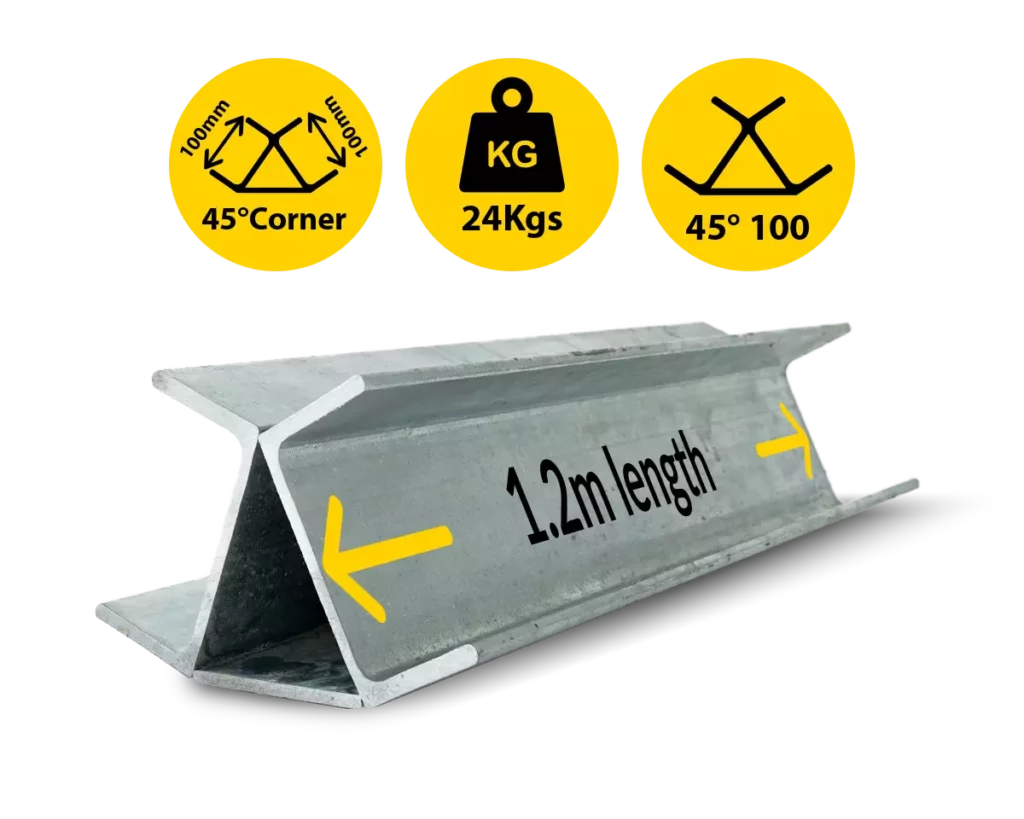

1200mm (1.2m) 45° Galvanised Steel Corner Post (100mm Width – Fits 80mm Sleepers)

$94.68 +GST

Introducing the 1200mm (1.2m) 45° Galvanised Steel (100mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this corner steel post is ideal for gentle deviations in the middle panels of your concrete sleeper retaining wall. The 45° Galvanised Steel post is compatible with any of our 80mm thick concrete sleepers.

Features:

995 in stock

Add to Cart

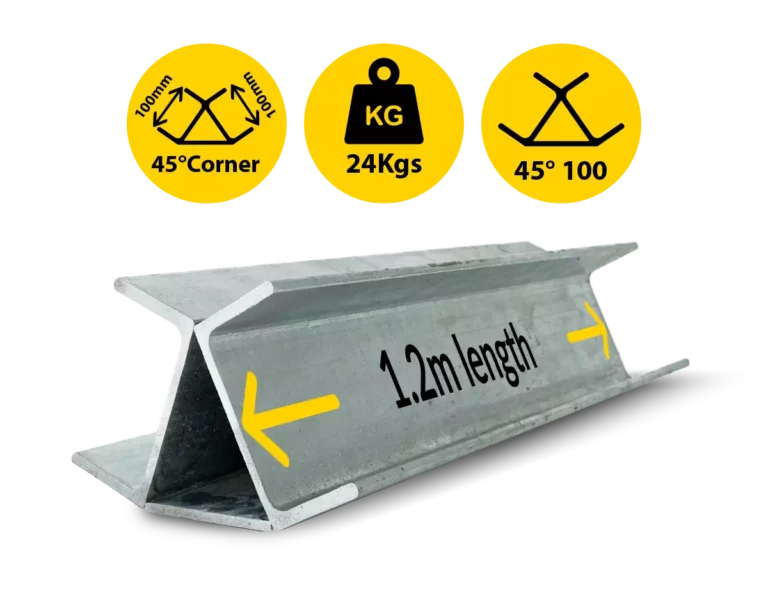

45@1.2|024 1200mm 45 Degree Galvanised Steel Corner Joiner Post to Support The Gentle Angle Deviations of a 80mm Concrete Sleeper Retaining Wall by Sunset Sleepers
1200mm (1.2m) 45° Galvanised Steel Corner Post (100mm Width - Fits 80mm Sleepers)
$94.68 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

This range also comes in the super heavy-duty 150mm thickness series, ideal for 100mm and 120mm thick concrete sleepers

Additional information

Weight 24.23 kg
Dimensions 1200 × 50 × 100 mm
Material

Hot Dipped Galvanised Steel

Steel Width

100mm Width

Steel Length

1.2 Meters

Steel Type

45° Corner Post Joiner

Weight KG-M

20.190 kg/m

Depth (Overall Height)

100mm

Flange Width

50mm

Flange Thickness

6.7mm

Web Thickness

4.2mm

Root Radius

8mm

Depth Between Flanges

86.6mm
