2700mm (2.7m) Heavy Duty 45° Galvanised Steel Corner Post (150mm Width – Fits 100mm & 150mm Sleepers)
$430.65 each inc. GST
- Unlock Trade Pricing
- Maximum Surcharge: 5kPa
- Soil Density: 18 (kN/m^3)
- Ka: 0.35
- Internal Friction Angle: 30°
- Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)
Download the engineering plan below for complete details.

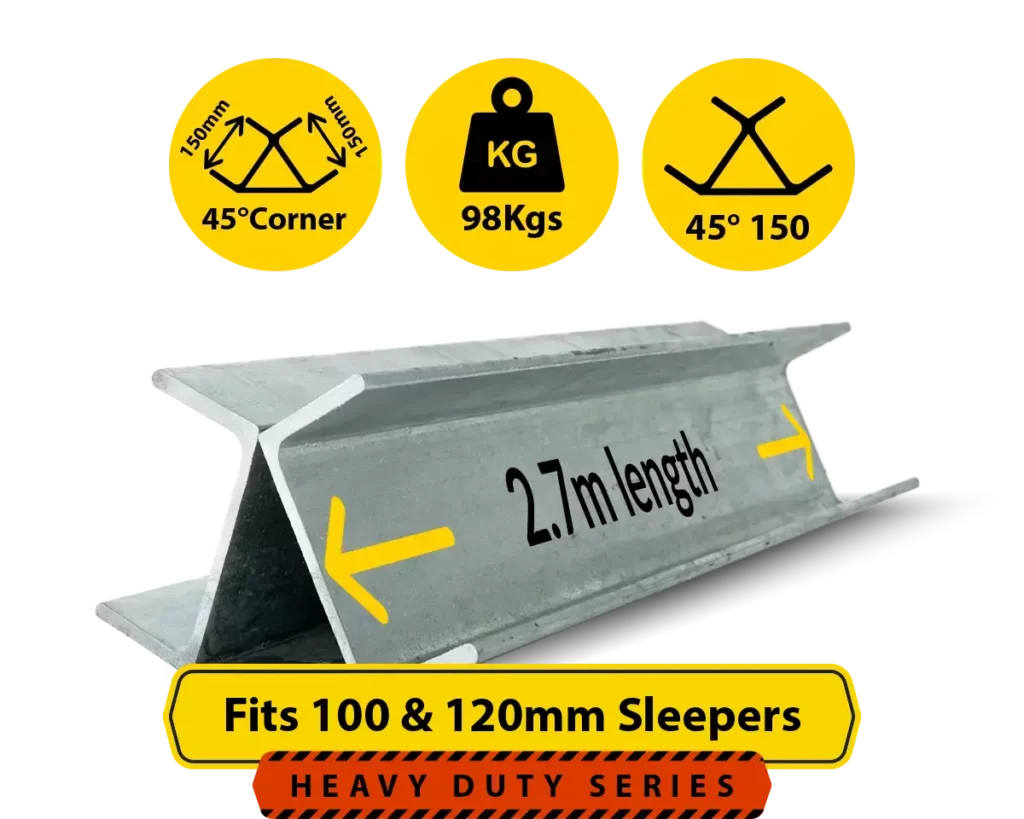

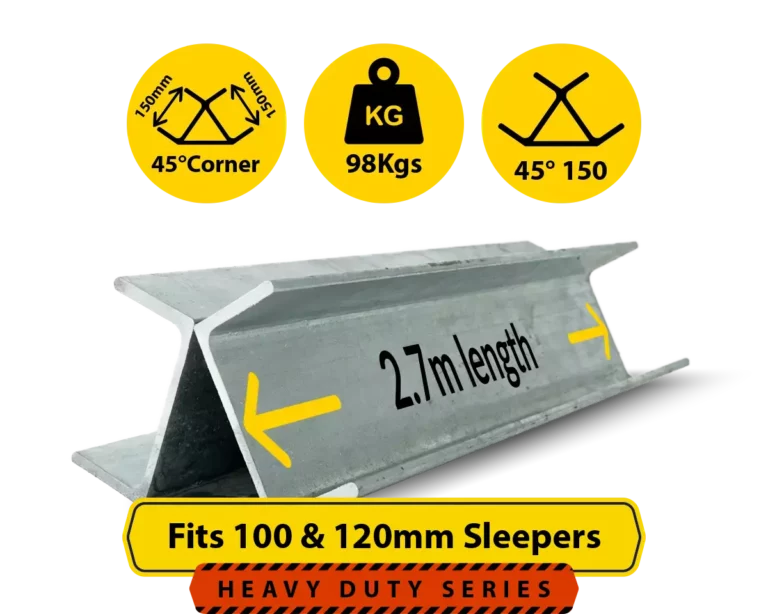

Introducing the 2700mm (2.7m) Heavy Duty Series 45° Galvanised Steel (150mm) Corner Posts — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this corner steel post is ideal for gentle deviations in the middle panels of your concrete sleeper retaining wall. The 45° Galvanised Steel post is compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.
Features:
- Made of hot-rolled steel and hot-dipped galvanised (zinc)
- Long-term protection against weather, fire, and corrosion
- Manufactured to Australian standards AS/NZS 4680
- Weighing in at approximately 38.5 kg per metre
- It also comes in 15 different lengths and up to 6m in length
| Steel Width: 150mm Width | |
| Steel Length: 2.7 Meters |
998 in stock
Your quote request is completely obligation-free. No payment or credit card details are required at checkout , and you won’t be charged at this stage.
Once we receive your order details, our team will prepare and send you a formal quote with payment instructions for your review.
- Delivery Cost Calculator (Vic-only)
This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.
South East Yard (Pakenham)
28 Meadow Parade, Pakenham VIC 3810
Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)
West Yard (Tottenham)
423 Somerville Rd, Tottenham VIC 3012
Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)
Select your preferred pickup yard during the quote checkout process. No payment required today.
Need a hand with your retaining wall project?
Our experienced team is here to help you source the right materials and guide you in the right direction.
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.
Additional information
| Weight | 98 kg |
|---|---|
| Dimensions | 2700 × 150 × 150 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 150mm Width |
| Steel Length | 2.7 Meters |
| Steel Type | 45° Corner Post Joiner |
| Weight KG-M | 38.5 kg/m |
| Depth (Overall Height) | 150mm |
| Flange Width | 150mm |
| Flange Thickness | 9.5mm |
| Web Thickness | 6.0mm |
| Root Radius | 10.0mm |
