4800mm (4.8m) Heavy Duty C-Channel End Panel Galvanised Steel Post (150mm Width – Fits 100mm & 150mm Sleepers)

$312.00 +GST

Introducing the 4800mm (4.8m) Heavy Duty Series C-Channel (150-PCF) End Panel Galvanised Steel Posts, the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 150-PCF (150mm Parallel Flange Channel) post is long-lasting and compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.

Features:

  • Made of hot-rolled steel and hot-dipped galvanised (zinc)
  • Long-term protection against weather, fire, and corrosion
  • Manufactured to Australian standards AS/NZS 4680
  • Weighing in at approximately 17.7 kg per metre
  • It also comes in 15 different lengths of lengths up to 6 meters

1000 in stock

Add to Cart

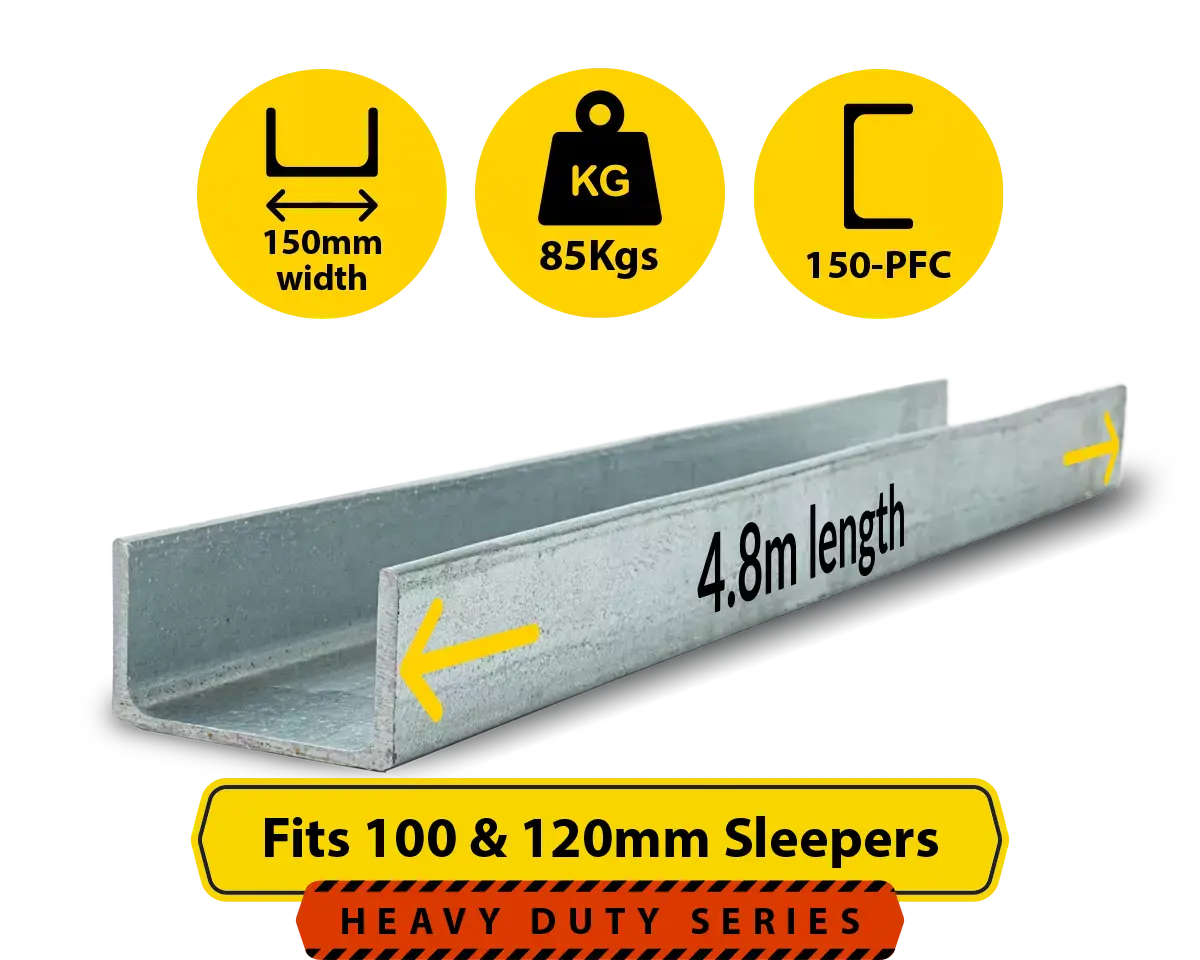

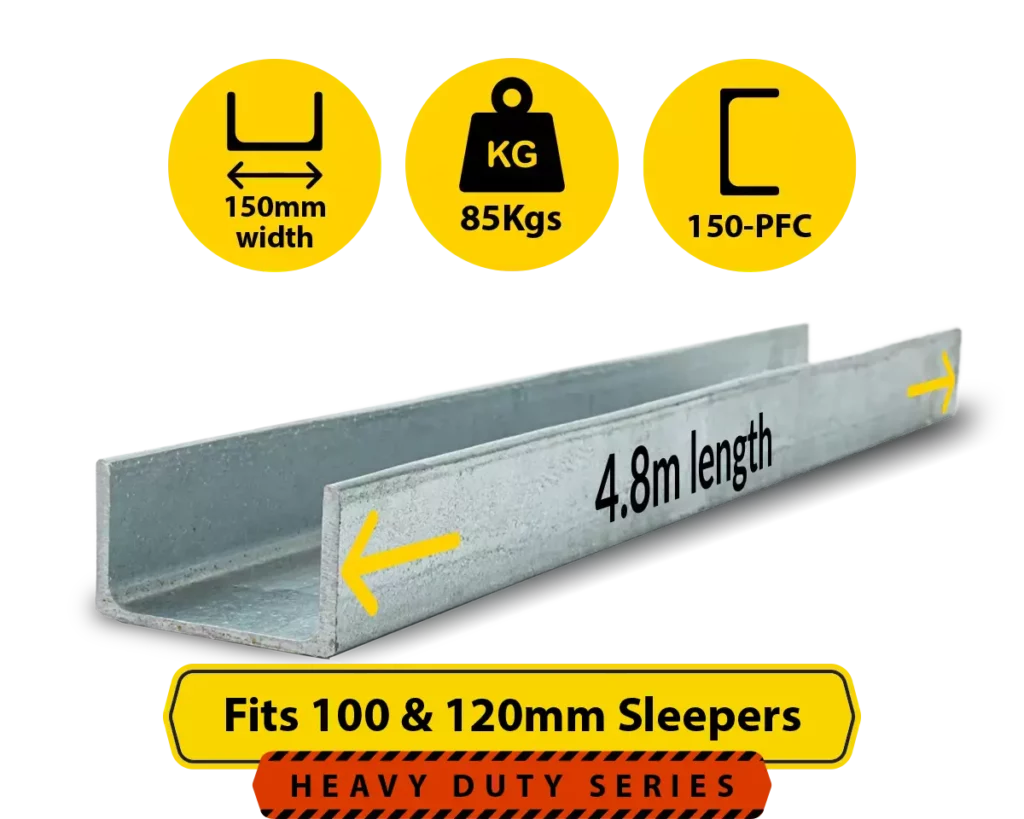

C4.8 150PFC.85 PCF 150 18.15 C Channel Galvanised Steel Beam Posts to Support The End Panels of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers
4800mm (4.8m) Heavy Duty C-Channel End Panel Galvanised Steel Post (150mm Width - Fits 100mm & 150mm Sleepers)
$312.00 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers

Additional information

Weight 85 kg
Dimensions 4800 × 75 × 150 mm
Material

Hot Dipped Galvanised Steel

Steel Width

150mm Width

Steel Length

4.8 Meters

Steel Type

C-Channel (PFC) End Joiner

Weight KG-M

17.7 kg/m

Depth (Overall Height)

150mm

Flange Width

75mm

Flange Thickness

9.5mm

Web Thickness

6.0mm

Root Radius

10.0mm

Depth Between Flanges

131mm

Moment of Inertia - XX

8.34 million mm**4

Moment of Inertia - YY

1.29 million mm**4
