1800mm (1.8m) Heavy Duty 90° Galvanised Steel Right Angle Post (150mm Width – Fits 100mm & 150mm Sleepers)

$261.00 +GST

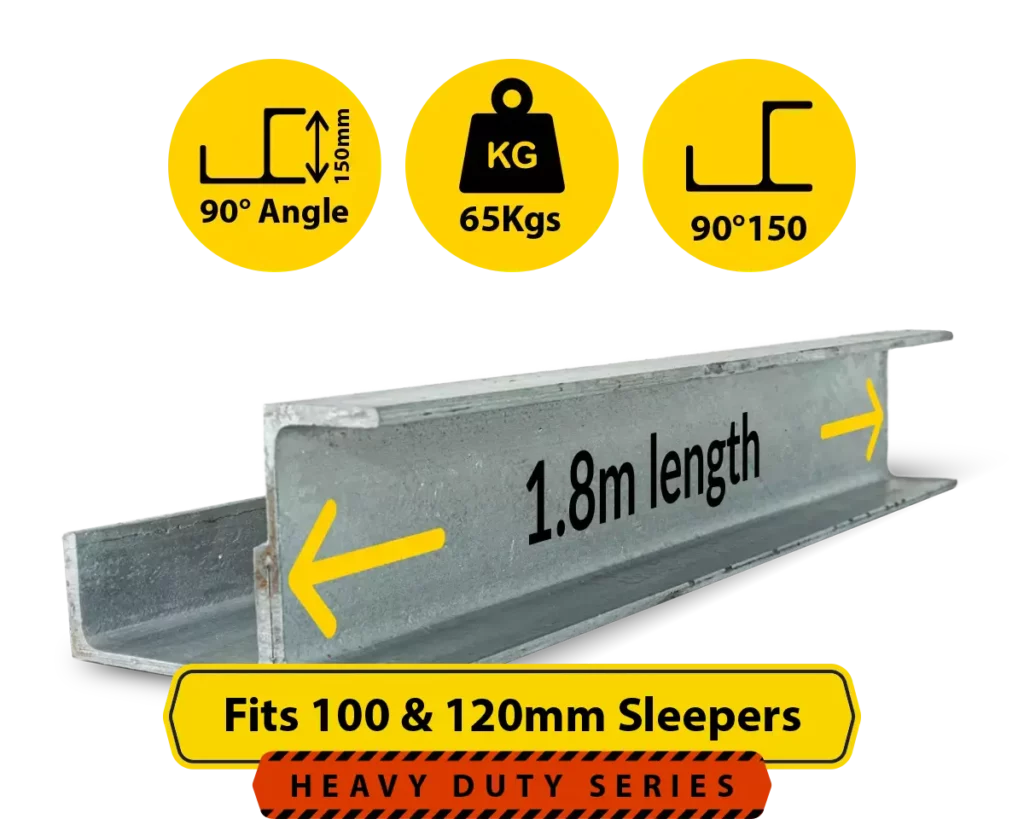

Introducing the 1800mm (1.8m) Heavy Duty Series 90° Right Angle Corner Galvanised Steel Post (150mm) — manufactured by welding two 100-PFC posts (100mm Parallel Flange Channel) — this steel post is ideal for hard 90° corners of your concrete sleeper retaining wall. The 90° Galvanised Steel post is compatible with any of our heavy duty 100mm concrete sleepers, or the super heavy duty 120mm thick concrete sleepers.

Features:

  • Made of hot-rolled steel and hot-dipped galvanised (zinc)
  • Long-term protection against weather, fire, and corrosion
  • Manufactured to Australian standards AS/NZS 4680
  • Weighing in at approximately 38.5 kg per metre
  • It also comes in 15 different lengths of lengths up to 6 meters

996 in stock

Add to Cart
90@1.8 150PFC.65 90 Degree Galvanised Steel Corner Joiner Post to Support The Right Angle of a 100 120mm Concrete Sleeper Retaining Wall by Sunset Sleepers
1800mm (1.8m) Heavy Duty 90° Galvanised Steel Right Angle Post (150mm Width - Fits 100mm & 150mm Sleepers)
$261.00 +GST

Taper Allowance

Sunset Sleepers Taper Allowance for Concrete Sleepers
Small taper (5-10mm) at the ends from face to back of sleeper

Please note that all of our concrete sleepers have a small taper (5-10mm) at the ends from face to back of sleeper to aid in the demoulding of the sleeper during the production process. For more information, please see our Engineering Guide or reach out to our support team for any questions.

  • Hot-rolled steel
  • Hot-dipped galvanised
  • Manufactured to Australian standards
  • Long lasting protection against weather, fire and corrosion
  • Will not fade, rot, warp or be subject to termites
  • Pre-drilled for fence bracket connection
  • Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

If you’re looking for steel posts that fit our 80mm standard strength concrete sleepers, then please see our 100mm width steel posts range.

Additional information

Weight 65 kg
Dimensions 1500 × 150 × 150 mm
Material

Hot Dipped Galvanised Steel

Steel Width

150mm Width

Steel Length

1.8 Meters

Steel Type

90° Right Angle Post Joiner

Weight KG-M

38.5 kg/m

Depth (Overall Height)

150mm

Flange Width

150mm

Flange Thickness

9.5mm

Web Thickness

6.0mm

Root Radius

10.0mm
