C1.5|013 PCF 100 8.33 C Channel Galvanised Steel Beam Posts to Support The End Panels of a 80mm Concrete Sleeper Retaining Wall by Sunset Sleepers

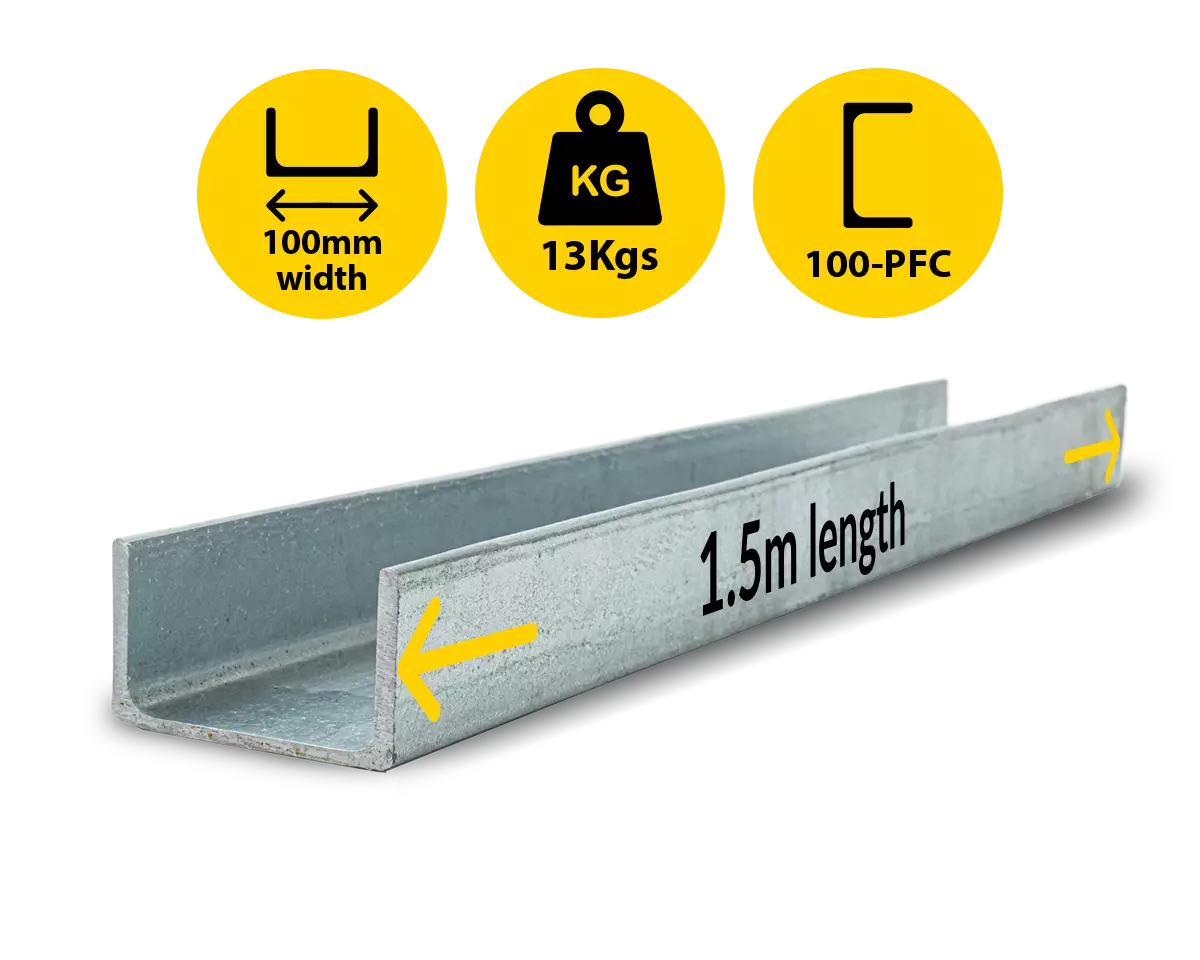

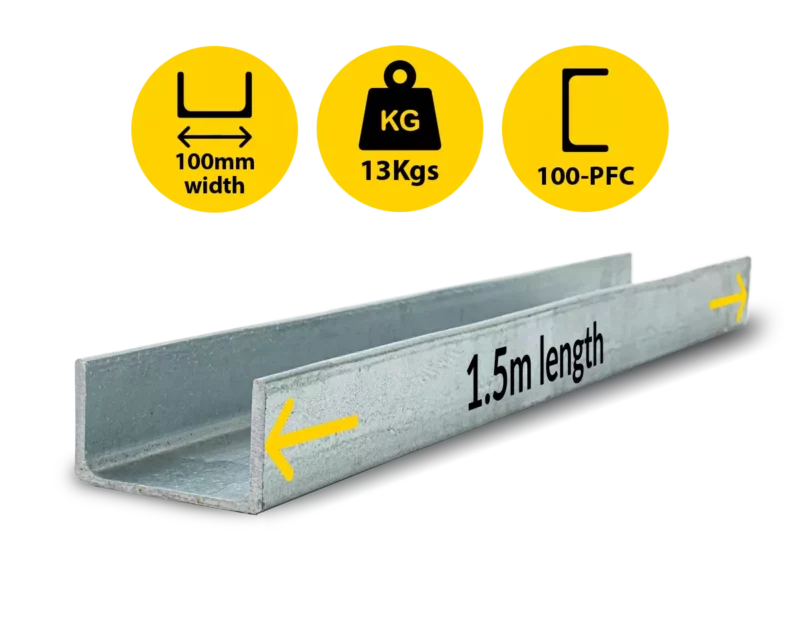

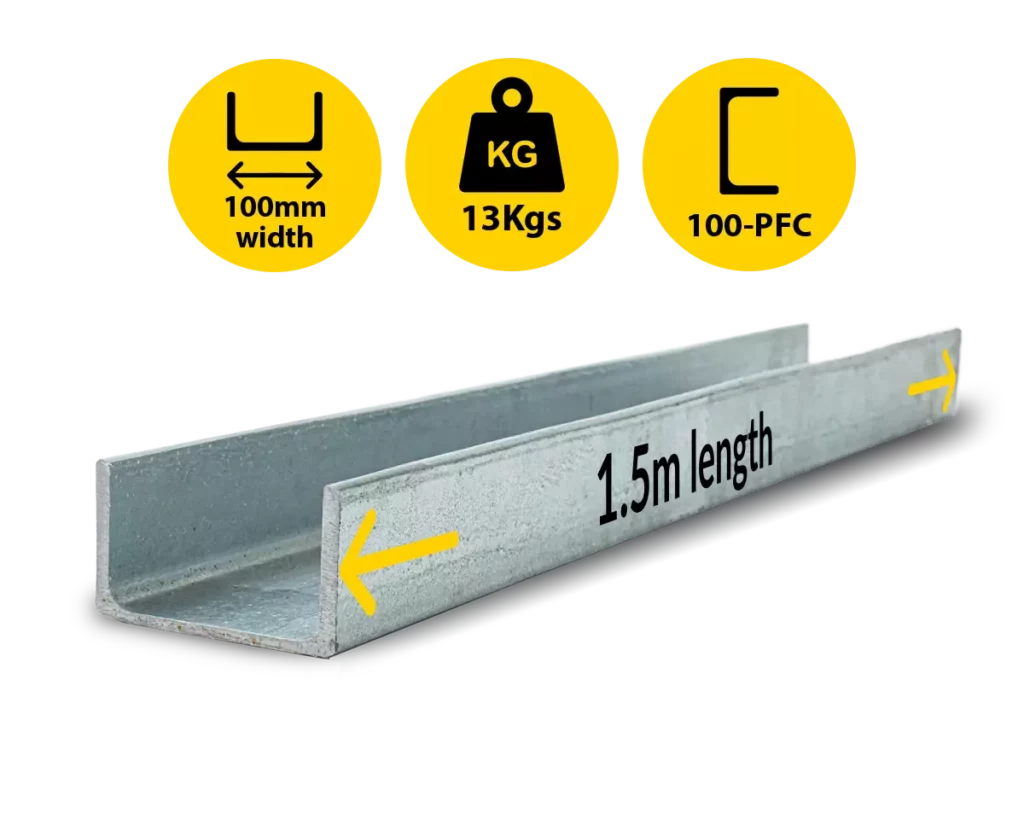

1500mm (1.5m) C-Channel End Panel Galvanised Steel Post (100mm Width – Fits 80mm Sleepers)

$47.69 each inc. GST

Trades with valid ABN Numbers can receive special discount pricing. Enquire Now

Maximum Retained Heights are measured based on the following assumed soil properties:

Maximum Surcharge: 5kPa
Soil Density: 18 (kN/m^3)
Ka: 0.35
Internal Friction Angle: 30°
Reo Bars 2-N12, 3-N10, or 2-12mm GFRP Bars (60GPa)

Download the engineering plan below for complete details.

Introducing the 1500mm (1.5m) C-Channel (100-PCF) End Panel Galvanised Steel Posts, the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 100-PCF (100mm Parallel Flange Channel) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).

Features:

Made of hot-rolled steel and hot-dipped galvanised (zinc)
Long-term protection against weather, fire, and corrosion
Manufactured to Australian standards AS/NZS 4680
Weighing in at approximately 8.33 kg per metre
It also comes in 11 different lengths of lengths up to 3.9 meters

Steel Width: 100mm Width	100mm Width 150mm Width
Steel Length: 1.5 Meters	1.2 Meters 1.5 Meters 1.8 Meters 2.1 Meters

881 in stock

Your quote request is completely obligation-free. No payment or credit card details are required at checkout , and you won’t be charged at this stage.

Once we receive your order details, our team will prepare and send you a formal quote with payment instructions for your review.

This delivery calculator automatically identifies the most cost-effective delivery rate from the nearest Sunset Sleepers yard in Melbourne.

South East Yard (Pakenham)

28 Meadow Parade, Pakenham VIC 3810

Pickup Hours: Mon-Fri: 7:30 AM - 3:45 PM (Strict)

Get Directions ↗

West Yard (Tottenham)

423 Somerville Rd, Tottenham VIC 3012

Pickup Hours: Mon-Fri: 8:00 AM - 3:15 PM (Strict)

Get Directions ↗

Select your preferred pickup yard during the quote checkout process. No payment required today.

Delivery suburb

Estimated delivery dates: September 28th - October 1st

Help & Support

Need a hand with your retaining wall project?

Our experienced team is here to help you source the right materials and guide you in the right direction.

We're here, Mon to Fri: 7:30am - 4pm AEST

Hot-rolled steel
Hot-dipped galvanised
Manufactured to Australian standards
Long lasting protection against weather, fire and corrosion
Will not fade, rot, warp or be subject to termites
Pre-drilled for fence bracket connection
Can be painted to suit the surrounding colour scheme

While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.

This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.

Additional information

Weight	12.50 kg
Dimensions	1500 × 50 × 100 mm
Material	Hot Dipped Galvanised Steel
Steel Width	100mm Width
Steel Length	1.5 Meters
Steel Type	C-Channel (PFC) End Joiner
Weight KG-M	8.330 kg/m
Depth (Overall Height)	100mm
Flange Width	50mm
Flange Thickness	6.7mm
Web Thickness	4.2mm
Root Radius	8mm
Depth Between Flanges	86.6mm
