1500mm (1.5m) C-Channel End Panel Galvanised Steel Post (100mm Width - Fits 80mm Sleepers)
$43.35 +GST
2100mm (2.1m) C-Channel End Panel Galvanised Steel Post (100mm Width - Fits 80mm Sleepers)
$60.69 +GST

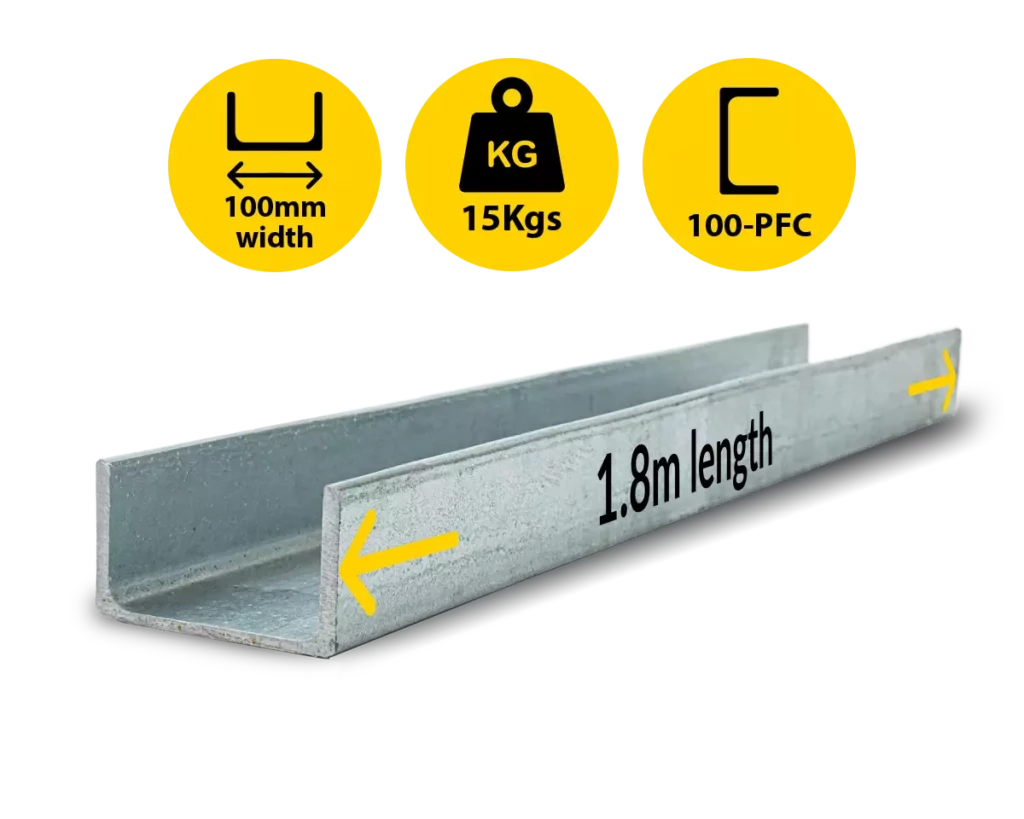

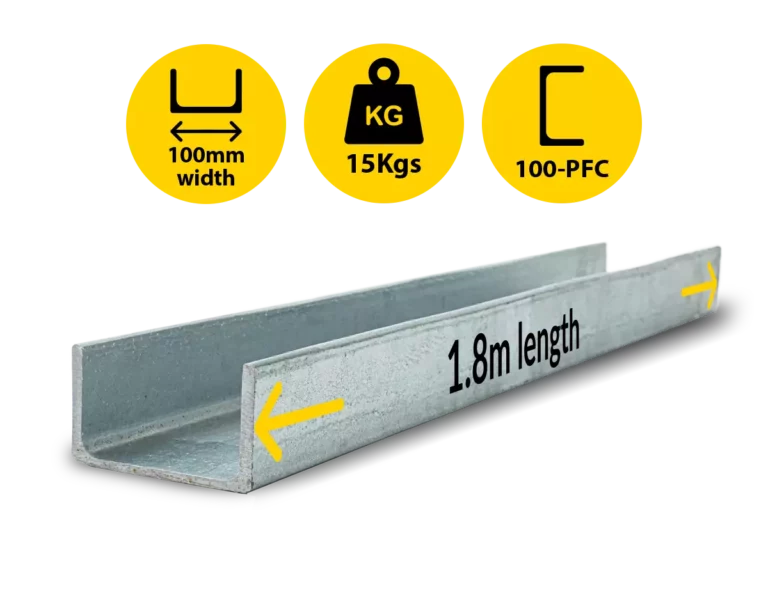

1800mm (1.8m) C-Channel End Panel Galvanised Steel Post (100mm Width – Fits 80mm Sleepers)
$52.02 +GST
Introducing the 1800mm (1.8m) C-Channel (100-PCF) End Panel Galvanised Steel Posts, the ideal solution for supporting the end panels of your concrete sleeper retaining wall. This 100-PCF (100mm Parallel Flange Channel) post is long-lasting and compatible with any 75 to 80mm thick concrete sleepers (or timber sleepers).
Features:
- Made of hot-rolled steel and hot-dipped galvanised (zinc)
- Long-term protection against weather, fire, and corrosion
- Manufactured to Australian standards AS/NZS 4680
- Weighing in at approximately 8.33 kg per metre
- It also comes in 11 different lengths of lengths up to 3.9 meters
994 in stock
- Hot-rolled steel
- Hot-dipped galvanised
- Manufactured to Australian standards
- Long lasting protection against weather, fire and corrosion
- Will not fade, rot, warp or be subject to termites
- Pre-drilled for fence bracket connection
- Can be painted to suit the surrounding colour scheme
While we have made every effort to check and verify the information provided here by our third party suppliers, we cannot give any guarantees as to its accuracy. If you do find an error, please let us know so we can correct it.
This range also comes in the super heavy-duty 150mm thickness series, which are ideal for 100mm and 120mm thick concrete sleepers.
Additional information
| Weight | 14.99 kg |
|---|---|
| Dimensions | 1800 × 50 × 100 mm |
| Material | Hot Dipped Galvanised Steel |
| Steel Width | 100mm Width |
| Steel Length | 1.8 Meters |
| Steel Type | C-Channel (PFC) End Joiner |
| Weight KG-M | 8.330 kg/m |
| Depth (Overall Height) | 100mm |
| Flange Width | 50mm |
| Flange Thickness | 6.7mm |
| Web Thickness | 4.2mm |
| Root Radius | 8mm |
| Depth Between Flanges | 86.6mm |
